Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 20A CHAS
- Series：DP
- Mfr：Delta Electronics
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：20 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (8-32)
- Inductance：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

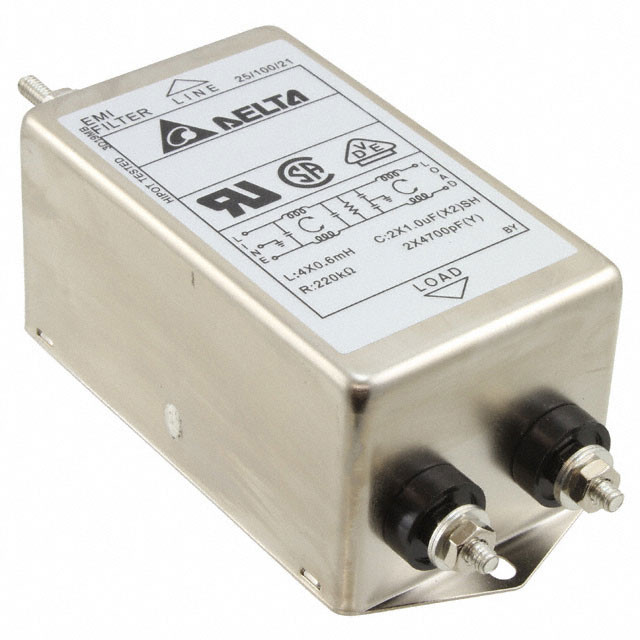

The Delta Electronics 20DPCS5C is a single-phase, two-stage power line filter designed for chassis mounting. It features screw-to-screw termination and handles a rated current of 20 A at voltages up to 250 VAC (115/250 VAC). The unit operates at standard frequencies of 50 Hz and 60 Hz. It provides switch transient filtering capabilities with a leakage current specification of 2 mA. The component is part of the DP series and is supplied in bulk packaging.
Feature Summary
- Two-stage filtering architecture for effective noise suppression
- Chassis mount design with screw-to-screw termination
- Switch transient filtering capability
Applications
- Industrial equipment power input stages
- Medical device power supplies
- Information technology hardware
Procurement Notes
Verify the specific datasheet version before procurement as product specifications may be subject to change. Confirm that the chassis mounting dimensions and terminal spacing match the mechanical design constraints of the target enclosure. Ensure the operating environment remains within the specified voltage and current ratings to maintain compliance and safety standards.
Selection Notes
Select this component when a single-phase, two-stage filter is required for chassis installation. The 20 A rating suits moderate to high-power applications. Verify that the screw-to-screw termination method aligns with the available wiring infrastructure. Consider the 2 mA leakage current limit if strict safety isolation requirements are present in the system design.
Part Context
This component belongs to the Delta Electronics DP series of power line filters. These filters are engineered for electromagnetic interference suppression in AC power lines. The 20DPCS5C specifically addresses single-phase applications requiring robust transient protection and noise reduction for sensitive electronic loads.
Replacement Considerations
Consult official manufacturer documentation for verified substitute part numbers. Cross-referencing requires matching electrical ratings, mounting style, and termination type.
