20DRGG5

Overview

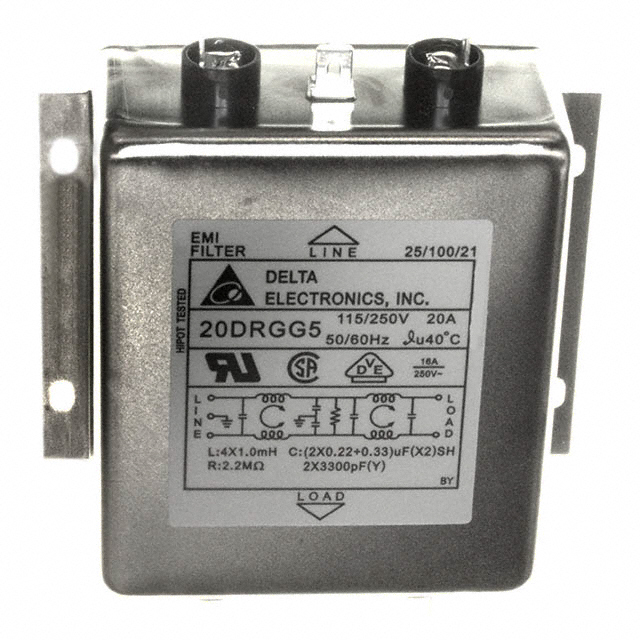

The Delta Electronics 20DRGG5 is a single-phase, two-stage EMI/EMC power line filter designed for chassis mounting. It operates at 115 VAC and 250 VAC with a rated current of 20 A at 50 Hz or 60 Hz. The component features tab connectors for termination and has a leakage current of 450 uA. It holds UL, CSA, and VDE compliance certifications.

Feature Summary

• Two-stage filtering architecture for effective electromagnetic interference suppression
• Chassis mount design with tab connector terminals
• Certified for international safety standards including UL, CSA, and VDE

Applications

• Industrial equipment power conditioning
• Medical device power supplies
• Commercial machinery EMC compliance

Procurement Notes

Verify the specific datasheet version as product discontinuation notifications may exist. Confirm terminal type compatibility during integration. Check current stock status due to potential end-of-life status. Ensure voltage ratings match system requirements before ordering.

Selection Notes

Select this model for applications requiring single-phase filtering at 20 A. Verify chassis space for mounting dimensions. Compare leakage current specifications against sensitive load requirements. Ensure input/output voltage ranges align with the 115/250 VAC rating.

Part Context

This component belongs to the DW/DV series of power line filters from Delta Electronics. These filters are engineered for general-purpose EMI suppression in AC power lines. The series supports various current ratings and mounting styles for diverse industrial applications.

Replacement Considerations

The 20DWGG5 and 20DVGG5 are listed as equivalent part numbers. Verify pinout and dimensional compatibility before substitution. Confirm that replacement units meet the same UL, CSA, and VDE certification requirements.
