20DSGG5

Overview

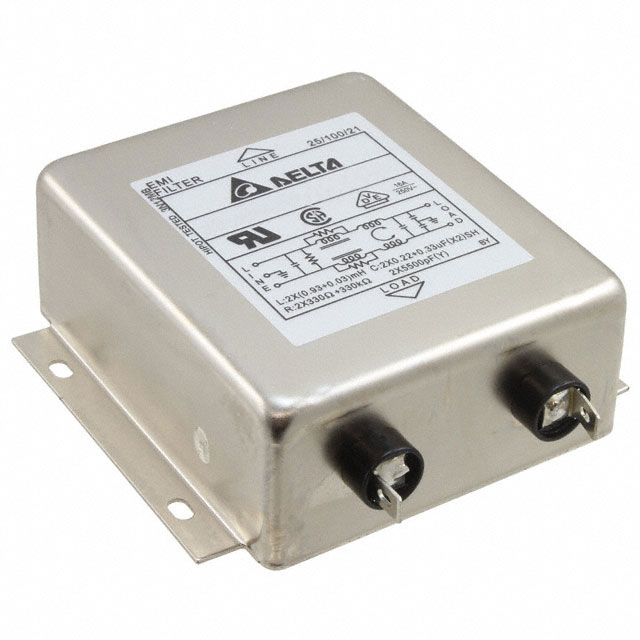

The Delta Electronics 20DSGG5 is a multi-purpose power line filter designed for chassis mounting. It features a one-phase, two-stage filtering architecture suitable for general electromagnetic interference suppression. The component supports voltage ratings of 115 VAC and 250 VAC with a continuous current rating of 20 A. It utilizes tab connectors for terminal engagement and operates at standard frequencies of 50 Hz and 60 Hz. The unit holds UL, CSA, and VDE compliance certifications.

Feature Summary

• Multi-purpose power line filtering capability
• One-phase two-stage filter topology
• Chassis mount installation style

Applications

• Industrial equipment power conditioning
• General purpose electronic systems
• Power supply input stages

Procurement Notes

Verify the specific suffix G5 against official datasheets to confirm terminal configuration and certification status. Confirm availability as this series may be subject to discontinuation notices. Ensure mechanical dimensions match the chassis opening before procurement.

Selection Notes

Select this model when a 20 A current capacity is required for single-phase applications. The two-stage design offers enhanced attenuation compared to single-stage units. Verify that the tab connector type aligns with the system wiring harness requirements.

Part Context

This component belongs to the DV series of power line filters manufactured by Delta Electronics. The series provides standardized solutions for EMI suppression in AC power lines. The 20DSGG5 variant specifically denotes the 20 Ampere current rating within this product family.

Replacement Considerations

Consult official manufacturer documentation for confirmed substitute part numbers. Cross-referencing requires matching voltage, current, and physical mounting specifications.
