Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 20A CHAS
- Series：DV
- Mfr：Delta Electronics
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：20 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：L1 - 1.73mH, L2 - 30mH
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

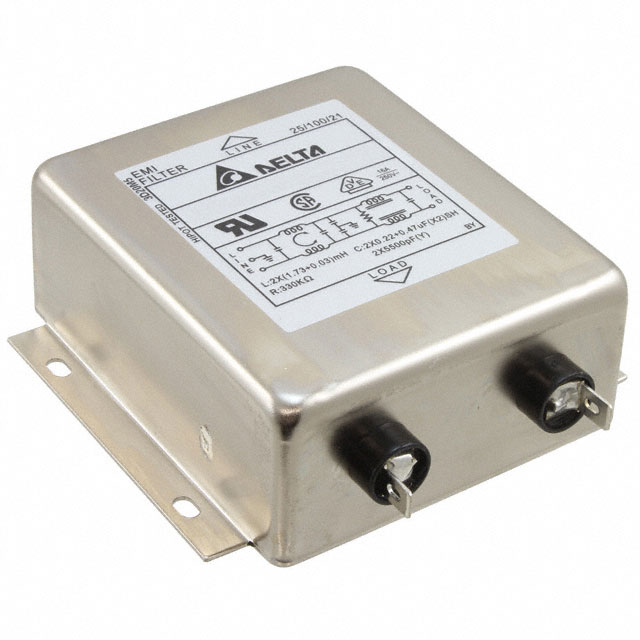

The Delta Electronics 20DVGG5 is a multi-purpose, single-phase two-stage power line filter designed for chassis mounting. It supports nominal voltages of 115 VAC and 250 VAC with a rated current of 20 A. The unit operates at frequencies of 50 Hz and 60 Hz and features tab connectors for lug-lug termination. Key electrical specifications include a leakage current of 900 uA. The component holds UL, CSA, and VDE compliance certifications.
Feature Summary
- Provides EMI/RFI suppression through a two-stage filtering architecture
- Designed for chassis mounting with quick-connect tab terminals
- Certified for international safety standards including UL, CSA, and VDE
Applications
- Industrial equipment power conditioning
- Medical device power supply input stages
- Commercial machinery noise reduction
Procurement Notes
This component is officially designated as End-of-Life (EOL) by the manufacturer. Production has been discontinued, and no new units are available from authorized channels. Procurement efforts should focus on verifying the authenticity of remaining stock from secondary distributors or identifying approved replacement components to ensure long-term project viability.
Selection Notes
Engineers requiring this specification must account for the discontinuation status during the design phase. Alternative components within the same series or comparable ratings should be evaluated for pin compatibility and thermal performance. Verify that substitute filters meet the required 20 A rating and 250 VAC insulation levels to maintain system integrity.
Part Context
The 20DVGG5 belongs to the DW/DV series of power line filters manufactured by Delta Electronics. These components are engineered for general-purpose electromagnetic interference suppression in AC power lines. The specific model utilizes a robust chassis-mount form factor suitable for integration into larger electrical enclosures and control panels.
Replacement Considerations
- 20DWGG5
FAQ
What is the maximum leakage current for the 20DVGG5?
The specified leakage current for this filter is 900 uA.
Is the 20DVGG5 suitable for 50 Hz and 60 Hz applications?
Yes, the component is rated for operation at both 50 Hz and 60 Hz frequencies.
