Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 20A CHAS
- Series：DW
- Mfr：Delta Electronics
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：20 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：L1 - 1.73mH, L2 - 30mH
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

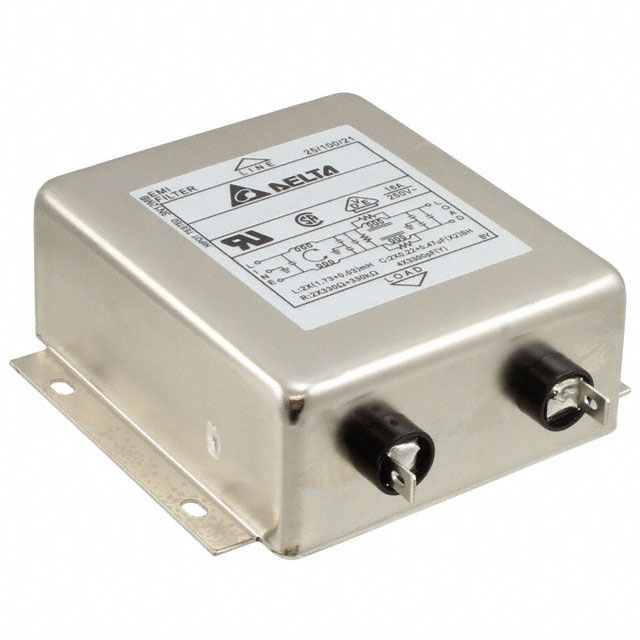

The Delta Electronics 20DWGG5 is a multi-purpose, single-phase two-stage power line filter designed for chassis mounting. It supports voltage ratings of 115 VAC and 250 VAC with a current rating of 20 A at operating frequencies of 50 Hz and 60 Hz. The component features tab connectors for lug-lug termination and has a leakage current of 900 uA. It holds UL, CSA, and VDE compliance certifications.
Feature Summary
- Single-phase two-stage filtering architecture for effective noise suppression
- Chassis mount design with tab connector terminals
- Certified for international safety standards including UL, CSA, and VDE
Applications
- Industrial equipment power conditioning
- Medical device power supply input stages
- Commercial machinery EMI/EMI protection
Procurement Notes
Verify the End-of-Life (EOL) status before procurement. Official documentation indicates this product is scheduled for discontinuation. Confirm availability through authorized distributors as stock levels may be limited or depleted. Ensure final design acceptance accounts for potential supply chain constraints associated with obsolete components.
Selection Notes
Select this component for applications requiring robust single-phase filtering in chassis-mounted configurations. Verify that the 20 A current rating and 115/250 VAC voltage range align with system requirements. Consider the tab connector interface compatibility during mechanical integration. Evaluate alternative models if long-term production stability is critical due to the discontinued status.
Part Context
This component belongs to the DW series of power line filters manufactured by Delta Electronics. It serves as an electromagnetic interference (EMI) and radio frequency interference (RFI) suppression device. The unit is categorized under power condition products within the manufacturer's portfolio, specifically designed for AC power line applications.
Replacement Considerations
Consult official Delta Electronics documentation for confirmed substitute part numbers. The datasheet references the 20DVGG5 as a related variant within the same product family. Verify pinout and electrical specifications before substituting.
