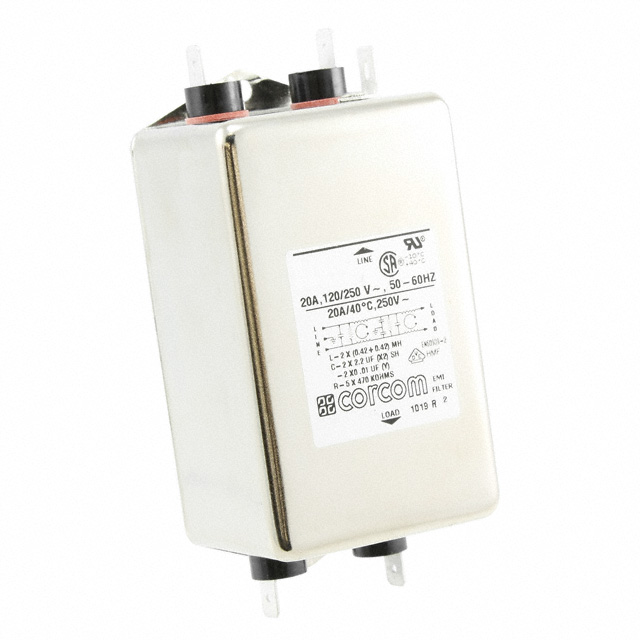

20EMC1

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：EMC
Mfr：TE Connectivity Corcom Filters
Package：Bulk

SKU:75c352140e4d Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：EMC
Mfr：TE Connectivity Corcom Filters
Package：Bulk
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：20 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

20EMC1

Overview

The TE Connectivity Corcom Filters 20EMC1 is a single-phase EMC/EMI line filter designed for chassis mounting. It operates at 50/60Hz with a rated AC voltage of 250V and a current rating of 20A. The component features a two-stage configuration and utilizes quick connect termination styles.

Feature Summary

Dual-stage RFI power line filtering architecture
Suitable for switching mode power supplies

Applications

Switching mode power supplies

Procurement Notes

Verify the manufacturer part number against official TE Connectivity documentation to ensure accuracy, as distributor listings may contain aliases or errors. Confirm that the specific order suffix matches the required electrical and mechanical specifications before procurement.

Selection Notes

Select this component for applications requiring 20A single-phase filtering at 250VAC. Ensure the design accommodates chassis mounting and quick connect terminals. Verify compatibility with the target switching mode power supply requirements.

Part Context

This component belongs to the TE Connectivity Corcom Filters product line, which specializes in EMI/RFI suppression solutions. The 20EMC1 is categorized as a power line filter within this portfolio, distinct from other series such as HQ or S based on its specific ratings and form factor.
