20EMC6

Overview

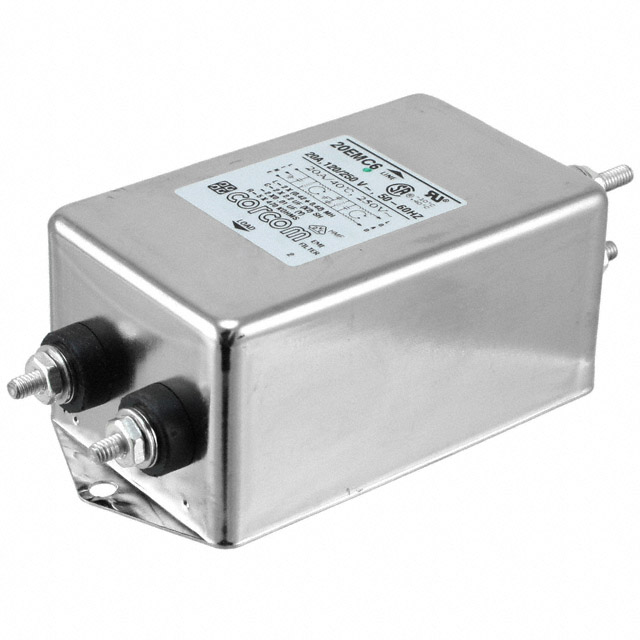

The TE Connectivity Corcom Filters 20EMC6 is a single-phase EMI/RFI power line filter designed for chassis mounting. It features a dual-stage configuration to provide effective noise attenuation in electrical systems. The component supports a maximum current of 20 A and operates at a rated voltage of 250 V AC within the 50 Hz and 60 Hz frequency range. It utilizes quick-connect terminals for circuit integration and complies with RoHS standards.

Feature Summary

• Dual-stage filtering architecture for enhanced electromagnetic interference suppression
• Chassis mount design for secure mechanical installation
• Quick-connect terminal style for simplified wiring

Applications

• Industrial automation equipment
• Medical devices
• Telecommunications infrastructure
• Consumer electronics

Procurement Notes

Verify the specific datasheet version for the 20EMC6 part number to confirm exact leakage current ratings and certification details such as UL, CSA, or VDE approvals. Ensure that the required quick-connect terminal dimensions match the mating connectors in the target assembly before finalizing procurement specifications.

Selection Notes

Select this component when a single-phase solution with a 20 A rating and 250 V AC capability is required. The dual-stage design offers superior noise reduction compared to single-stage alternatives. Confirm that the chassis mounting footprint and quick-connect terminal type are compatible with the system's mechanical and electrical interface requirements.

Part Context

This component belongs to the Corcom EMC series, which provides compact RFI power line filters recognized for EMI/RFI filtering solutions. The series includes various configurations tailored for different current and voltage ratings, supporting global market acceptance through compliance with international safety standards.

Replacement Considerations

Publicly confirmed substitute part numbers for the 20EMC6 were not identified in the provided source material.
