Product Detailed Parameters
- Description：LINE FILTER 250VAC 20A CHASS MNT
- Series：EP
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：20 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

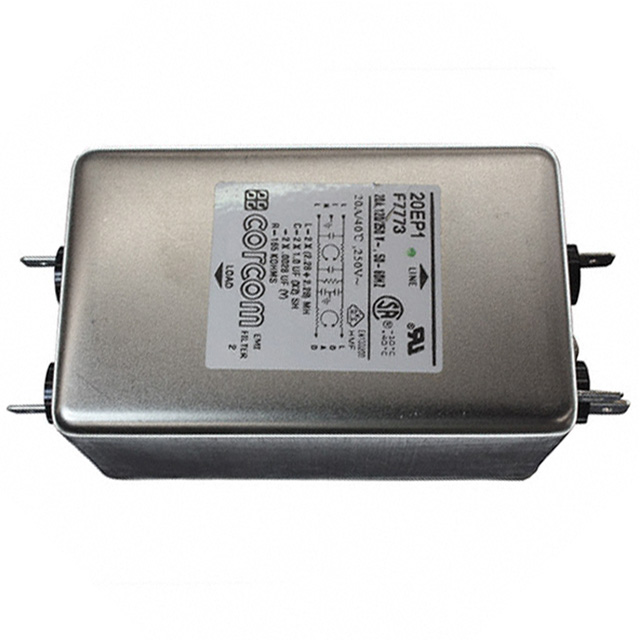

The TE Connectivity Corcom Filters 20EP1 is a single-phase power line filter module designed for general-purpose applications. It operates at a rated voltage of 250V AC and supports a maximum current of 20A. The unit features flange mounting and utilizes fast-on terminal connections. Certified by CSA, UR, and VDE, it functions within a temperature range of -10°C to 40°C at 50/60Hz frequencies.
Feature Summary
- Provides electromagnetic interference suppression for single-phase power lines
- Features robust flange mounting for secure chassis integration
- Utilizes fast-on terminals for simplified wiring connections
Applications
- General purpose industrial equipment
- Power supply units requiring EMI filtering
- Electronic devices needing compliance with EMC standards
Procurement Notes
Verify the specific datasheet version for the 20EP1 part number to confirm exact inductance values and attenuation curves, as these are critical for circuit design. Ensure that the fast-on terminal dimensions match the mating connector specifications on the target PCB or wire harness. Confirm that the flange mounting hole pattern aligns with the chassis cutout requirements before finalizing procurement.
Selection Notes
Select this component when a 20A capacity is required for single-phase AC applications. The flange mount style is suitable for direct chassis installation where space constraints favor a low-profile footprint. Verify that the operating environment remains within the specified -10°C to 40°C range to ensure optimal performance and longevity of the internal filter components.
Part Context
This component belongs to the TE Connectivity Corcom EP series of power line filter modules. The EP series is engineered for general-purpose EMI/RFI suppression in commercial and industrial electronics. It complements other Corcom offerings by providing reliable noise reduction for sensitive electronic loads connected to standard AC power grids.
Replacement Considerations
Consult official TE Connectivity substitution guides for verified equivalents. Cross-referencing requires matching current ratings, voltage limits, and terminal types.
