Product Detailed Parameters
- Description：LINE FILTER 440VAC 20A CHASS MNT
- Series：KEH
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：20 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

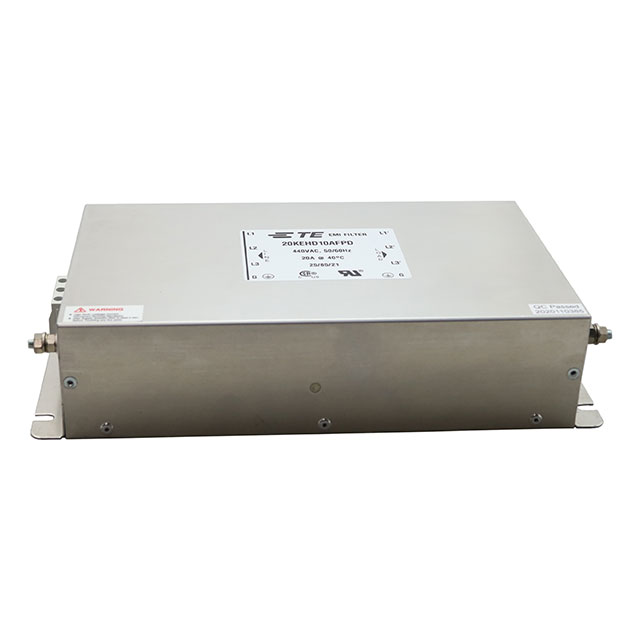

The TE Connectivity Corcom Filters 20KEHD10AFPD is a three-phase power line filter designed for industrial applications. It features a chassis mount configuration with screw termination. The unit supports a voltage rating of 440 VAC and a current rating of 20 A at operating frequencies of 50 Hz and 60 Hz. Physical dimensions include a height of 60 mm, length of 270 mm, and width of 140 mm. It operates within a temperature range of -25 C to +85 C and has a leakage current of 6 mA. The component holds UL and CSA compliance certifications.
Feature Summary
- Provides two-stage electromagnetic interference and radio frequency interference suppression for three-phase delta systems.
- Engineered for robust chassis mounting using screw-type terminal connections.
- Complies with international safety standards including UL and CSA certifications.
Applications
- Industrial machinery power conditioning
- Three-phase electrical distribution systems
- Equipment requiring EMI/EMC noise reduction
Procurement Notes
Verify the specific lifecycle status as the component may be scheduled for obsolescence or discontinued by the manufacturer. Confirm physical compatibility with existing chassis mounting points and terminal block requirements. Ensure that the 20 A current rating and 440 VAC voltage specifications align with the target circuit design parameters before finalizing procurement decisions.
Selection Notes
Select this model when a three-phase delta configuration is required for noise suppression in industrial environments. Consider the 20 A current capacity and 440 VAC rating to ensure adequate performance margins. Evaluate the chassis mount style and screw termination type against available panel space and wiring infrastructure constraints.
Part Context
This component belongs to the KEH series of power line filters manufactured by TE Connectivity under the Corcom brand. The series focuses on providing reliable electromagnetic interference filtering for heavy-duty industrial equipment. The 20KEHD10AFPD variant specifically addresses lower current requirements within the three-phase delta topology family.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify if alternative models within the KEH series meet identical electrical and mechanical specifications before considering substitution options.
