Product Detailed Parameters
- Description：LINE FILTER 520VAC 20A CHASS MNT
- Series：KEH
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：20 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

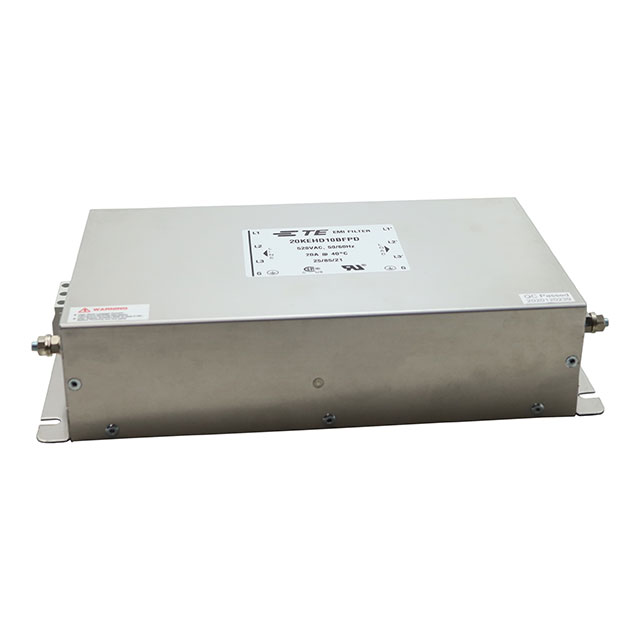

The TE Connectivity Corcom Filters 20KEHD10BFPD is a three-phase EMI/EMC power line filter designed for chassis mounting. It features a delta configuration with a rated voltage of 520 VAC and a current rating of 20 A. The unit utilizes terminal block termination and operates at frequencies of 50 Hz and 60 Hz. Certified by UL and CSA, it supports an operating temperature range from -25°C to +85°C.
Feature Summary
- Provides effective attenuation of electromagnetic interference in three-phase power systems
- Engineered for robust chassis mounting applications requiring secure terminal block connections
- Complies with international safety standards including UL and CSA certifications
Applications
- Industrial machinery power conditioning
- Three-phase motor drive protection
- Commercial power distribution units
Procurement Notes
Verify the exact part number against official TE Connectivity documentation before procurement. Confirm that the delta configuration matches your system requirements. Check for any recent lifecycle notices as availability may vary. Ensure terminal block specifications align with your wiring infrastructure.
Selection Notes
Select this component when a three-phase delta topology is required for 520 VAC systems. Ensure the chassis mounting style fits the enclosure design. Verify that the 20 A current rating meets the load requirements. Confirm compatibility with 50/60 Hz operational frequencies.
Part Context
This model belongs to the KE series of power line filters from TE Connectivity Corcom Filters. The series offers various configurations for different phase and voltage requirements. The 20KEHD10BFPD specifically addresses high-current three-phase applications needing reliable EMI suppression.
Replacement Considerations
Consult official TE Connectivity substitution guides for verified alternatives. Generic cross-references may not match the specific delta configuration or terminal block interface.
