20KEMS10AFPDHM

Overview

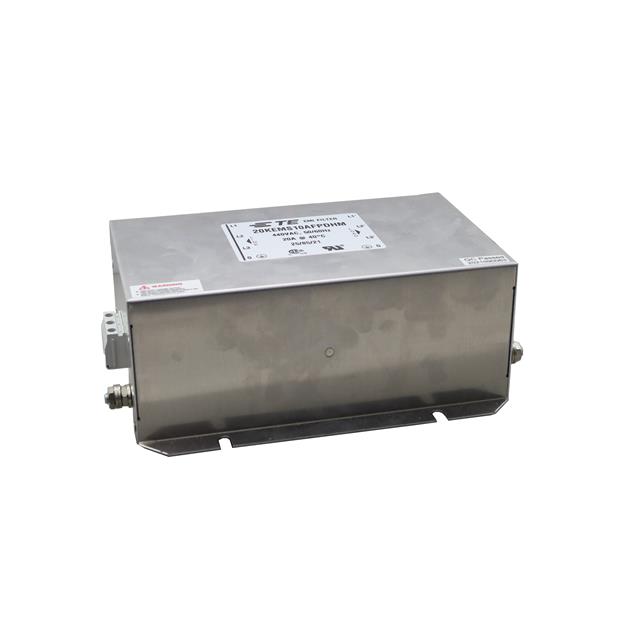

The TE Connectivity Corcom 20KEMS10AFPDHM is a single-stage, three-phase (Delta) EMC/EMI power line filter designed for industrial applications. It features a current rating of 20 A and a voltage rating of 440 VAC at 50-60 Hz. The unit utilizes terminal block input connections and supports DIN rail or chassis mounting configurations. Certified by UL and CSA, this component provides high-performance noise suppression suitable for controlling electromagnetic interference in sensitive electronic systems.

Feature Summary

• Single-stage EMI/EMC filtering architecture
• Terminal block input termination type
• UL and CSA safety certifications

Applications

• Industrial machinery control panels
• Three-phase motor drive systems
• Power distribution units requiring noise suppression

Procurement Notes

Verify the specific mounting style required for your installation, as sources indicate both DIN rail and chassis mount options. Confirm that the Delta phase configuration matches your system topology. Check for end-of-life status, as some distributors list this part as scheduled for obsolescence. Ensure the 440 VAC rating aligns with your operational voltage requirements before procurement.

Selection Notes

Select this model when a single-stage solution is sufficient for your noise attenuation needs. The 20 A current rating suits moderate-load three-phase applications. Consider the terminal block interface if PCB pins are not preferred. Verify compatibility with Delta network configurations, as Wye networks require different specifications. Ensure environmental conditions meet the filter's operating standards.

Part Context

This component belongs to the Corcom KEM series of power line filters, which are engineered for general-purpose EMC/EMI suppression. The series offers various current ratings and stage configurations to address diverse industrial noise challenges. As part of TE Connectivity's portfolio, it integrates into broader power management and signal integrity solutions for global manufacturing and infrastructure sectors.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Due to the scheduled obsolescence status noted by some distributors, alternative sourcing should be evaluated carefully. Consult TE Connectivity directly for current lifecycle status and potential next-generation replacements.
