20KEMS10BFPDHM

Overview

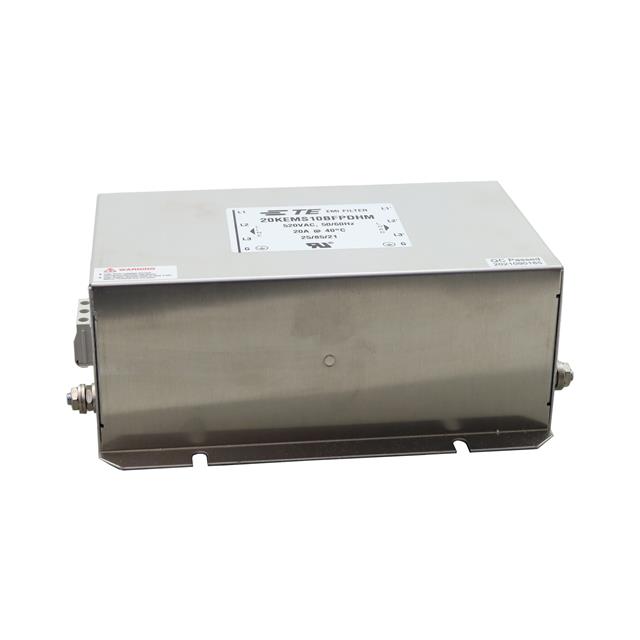

The TE Connectivity Corcom Filters 20KEMS10BFPDHM is a three-phase EMI/EMC power line filter designed for chassis mounting. It features a terminal block termination style and operates at a rated voltage of 520 VAC with a current rating of 20 A. The unit provides single-stage filtering capability at a working frequency of 50 Hz. Key electrical specifications include a maximum leakage current of 18 mA. The component carries UL and CSA compliance certifications.

Feature Summary

• Provides three-phase EMI/EMC noise suppression for industrial power systems
• Utilizes a robust chassis mount design with terminal block connections
• Engineered for high-performance delta configuration applications

Applications

• Industrial machinery power conditioning
• Three-phase motor drive input filtering
• Manufacturing equipment EMC compliance

Procurement Notes

Verify the specific ordering suffix to ensure correct voltage and phase ratings, as variations exist within the KEM series. Confirm that the chassis mount dimensions align with the enclosure design prior to procurement. Check for end-of-life status updates from the manufacturer, as availability may be restricted. Ensure terminal block compatibility with existing wiring harnesses. Validate regulatory certification requirements against local safety standards before finalizing the purchase order.

Selection Notes

Select this model when a three-phase solution is required for 520 VAC systems with up to 20 A continuous load. The chassis mount form factor is suitable for panel integration where space efficiency is critical. Consider the 18 mA leakage current limit for sensitive downstream electronics. Verify that the terminal block termination method matches the available connection infrastructure in the assembly design.

Part Context

This component belongs to the Corcom KEM series of power line filters, which are engineered for demanding industrial environments. The series offers various configurations for different phase and voltage requirements. The 20KEMS10BFPDHM specifically addresses high-current three-phase applications requiring reliable noise attenuation and durable mechanical construction for long-term operational stability.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
