Product Detailed Parameters
- Description：LINE FILTER 440VAC 20A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：20 A
- Frequency - Operating：50 ~ 60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

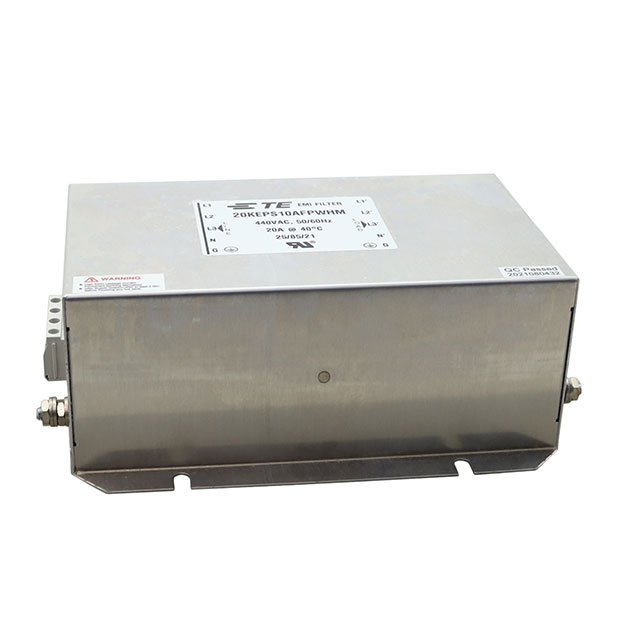

The TE Connectivity Corcom Filters 20KEPS10AFPWHM is a three-phase superior performance EMI power line filter designed for wye (4-wire + ground) configurations. It features a 20 A current rating and operates at 440 VAC with a frequency range of 50 Hz to 60 Hz. The unit utilizes terminal block connections for both input and output, ensuring secure electrical interfaces. Designed for chassis or DIN rail mounting, it measures 80 mm in height, 202 mm in length, and 135 mm in width. The filter maintains a leakage current of 8.5 mA and functions within an operating temperature range of -25°C to +85°C.
Feature Summary
- Provides single-stage electromagnetic interference mitigation for three-phase power systems
- Supports wye configuration with four wires plus ground topology
- Features robust terminal block termination for reliable connection integrity
Applications
- Industrial automation machinery requiring EMI suppression
- Climate control systems needing stable power quality
- General purpose industrial equipment operating on 440V AC networks
Procurement Notes
Verify the specific suffix against official TE Connectivity documentation to confirm exact terminal type and voltage ratings. Confirm availability status as distribution channels may list obsolete or discontinued stock. Ensure mounting hardware compatibility with specified chassis or DIN rail requirements before procurement.
Selection Notes
Select this model when a three-phase wye system requires single-stage filtering at 20 A. Verify that the 440 VAC rating matches the network voltage. Ensure physical dimensions fit the enclosure space. Confirm that terminal block termination suits the existing wiring infrastructure compared to screw or quick-connect alternatives.
Part Context
This component belongs to the Corcom KEP series of power line filters. The series offers various current ratings and mounting styles for industrial EMC applications. The 20KEPS10AFPWHM variant specifically addresses 20 A wye-connected loads with terminal block interfaces, distinguishing it from screw-terminal or lower-current counterparts in the same product family.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult TE Connectivity technical support for direct replacements or cross-reference options based on specific electrical and mechanical constraints.
