Product Detailed Parameters
- Description：LINE FILTER 520VAC 20A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：20 A
- Frequency - Operating：50 ~ 60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

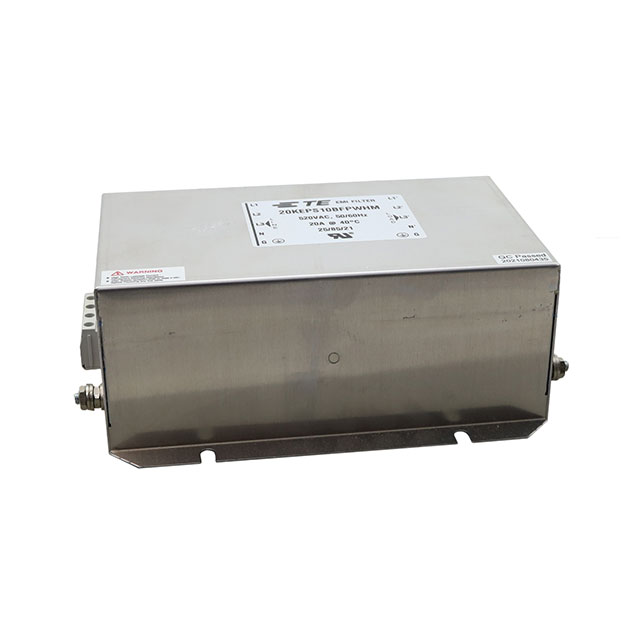

The TE Connectivity Corcom Filters 20KEPS10BFPWHM is a three-phase superior performance EMI filter designed for industrial power conditioning. It features a rated voltage of 520 VAC and a current capacity of 20 A at operating frequencies of 50 Hz or 60 Hz. The unit utilizes chassis mounting with quick connect and screw termination types. Physical dimensions are 202 mm in length, 135 mm in width, and 80 mm in height. It operates within a temperature range of -25°C to +85°C and has a leakage current of 8.5 mA. The component holds UL and CSA compliance certifications.
Feature Summary
- Provides superior performance electromagnetic interference suppression for three-phase systems
- Supports high-plus single-stage filtering configuration
- Compatible with wye-connected power architectures
Applications
- Industrial converter systems
- Power conditioning equipment
- Three-phase EMC/EMI line filtering
Procurement Notes
Verify the specific suffix BFPWHM against official datasheets to confirm terminal type and mounting style, as variations exist within the KEP series. Confirm availability status as some sources indicate discontinuation while others list active stock. Ensure the required certification marks (UL, CSA) match the specific manufacturing batch documentation provided by the supplier.
Selection Notes
Select this model when a 20 A rating at 520 VAC is required for three-phase applications. Consider the chassis mount form factor and physical dimensions (202x135x80 mm) for enclosure integration. Verify that the quick connect and screw termination options align with existing wiring infrastructure. Ensure the operating temperature range meets environmental requirements.
Part Context
This component belongs to the Corcom KEP series of power line filters manufactured by TE Connectivity. The series offers various current ratings and configurations for industrial noise suppression. The 20KEPS10BFPWHM variant specifically addresses higher current needs compared to lower-rated models in the same family, utilizing a robust chassis-mount design for stable installation in demanding environments.
Replacement Considerations
Check for direct substitutes within the KEP series with identical electrical ratings. Verify mechanical compatibility if replacing units in existing enclosures. Note that some distributors list similar part numbers with different suffixes which may alter termination styles.
