Product Detailed Parameters
- Description：LINE FILTER 440VAC 20A CHASS MNT
- Series：KEV
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Wye)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：20 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

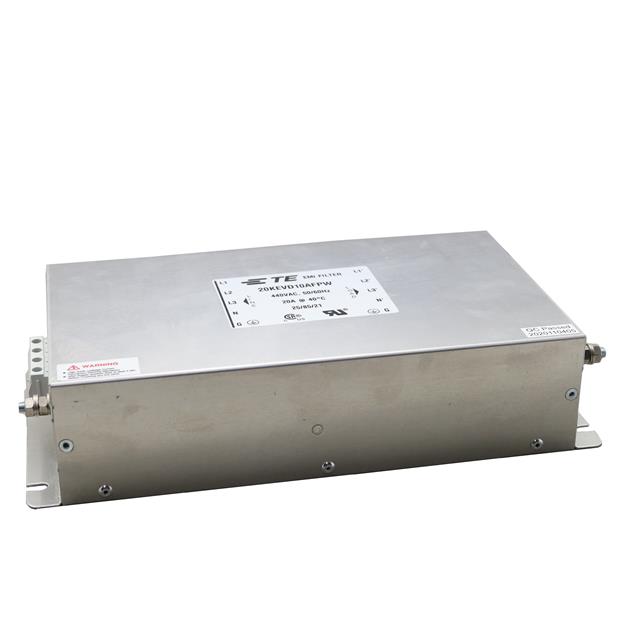

The 20KEVD10AFPW is a three-phase very high-performance EMI power line filter manufactured by TE Connectivity Corcom. It supports a rated voltage of 440 VAC and a current rating of 20 A at operating frequencies of 50 Hz and 60 Hz. Designed for chassis mounting, the unit features quick connect and screw termination options with a leakage current of 8.5 mA. The component operates within a temperature range of -25°C to +85°C and holds UL and CSA compliance certifications.
Feature Summary
- Provides very high-performance electromagnetic interference suppression for three-phase power systems
- Supports dual termination methods including quick connect terminals and screw connections
- Engineered for secure chassis mounting in industrial environments
Applications
- Industrial machinery power conditioning
- Three-phase equipment noise suppression
- Power distribution units requiring EMI filtering
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to limited availability status. Confirm specific datasheet revisions and certification documents prior to integration. Ensure mechanical fitment matches chassis mounting requirements and terminal compatibility aligns with system wiring specifications.
Selection Notes
Select this model for applications requiring robust three-phase EMI attenuation at 20 amperes. Verify that the 440 VAC rating matches the supply network and that chassis mounting constraints accommodate the physical dimensions. Consider leakage current limits when designing safety grounding paths for sensitive loads.
Part Context
This component belongs to the KEV series of power line filters from TE Connectivity Corcom. The series specializes in high-performance electromagnetic interference filtration for demanding industrial power applications. The part number indicates specific electrical ratings and termination styles within the broader product family.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer resources for direct replacements or functional equivalents.
