20KEVD10BFPW

Overview

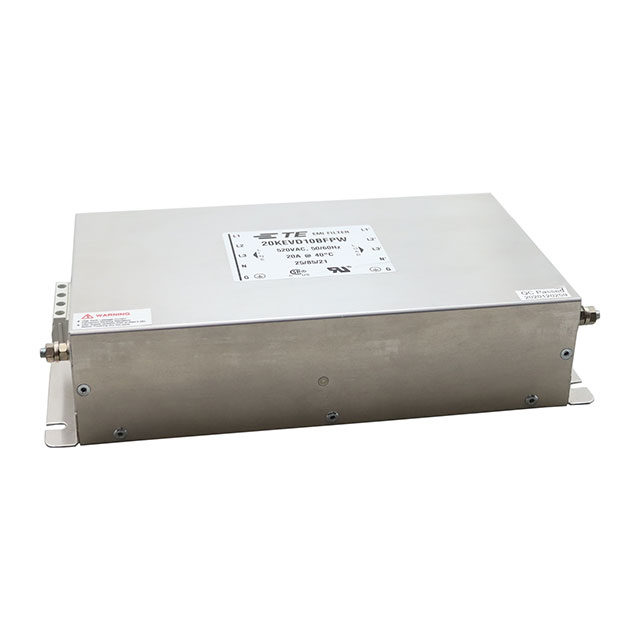

The 20KEVD10BFPW is a three-phase superior performance EMI/EMC power line filter manufactured by TE Connectivity Corcom. Designed for chassis mounting, this component supports a rated voltage of 520 VAC and a continuous current rating of 20 A at operating frequencies of 50 Hz and 60 Hz. It utilizes a two-stage topology with terminal block termination to ensure robust signal integrity. The unit features a low leakage current of 8.5 mA and operates within a temperature range of -25°C to +85°C. Physical dimensions are 202 mm in length, 135 mm in width, and 80 mm in height. It holds UL and CSA compliance certifications.

Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Chassis mount design with terminal block connections
• Low leakage current specification for safety compliance

Applications

• Industrial machinery power distribution systems
• Medical equipment power supplies
• Telecommunications infrastructure power conditioning

Procurement Notes

Verify the specific datasheet version and certification status prior to procurement, as regulatory documentation may be updated. Confirm that the terminal block interface matches the existing wiring harness requirements. Ensure the chassis mounting holes align with the specified physical dimensions of 202 mm by 135 mm. Check for any regional restrictions or supply limitations associated with this component number before finalizing orders.

Selection Notes

Select this model when high-performance noise suppression is required for three-phase systems operating at 520 VAC. The two-stage design distinguishes it from general-purpose filters, offering superior attenuation characteristics. Consider the terminal block termination method if quick connect options are not preferred. Evaluate the 20 A current rating against peak load requirements to prevent thermal overload during operation.

Part Context

This component belongs to the KEV series of power line filters from TE Connectivity Corcom. The series is engineered for demanding industrial and medical applications requiring strict electromagnetic compatibility. The 20KEVD10BFPW represents a specific configuration within this lineup, characterized by its two-stage filtering capability and robust chassis-mount construction suitable for heavy-duty environments.

Replacement Considerations

No public confirmed substitute part numbers are available.
