20MV1

$63.78

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：MV
Mfr：TE Connectivity Corcom Filters
Package：Bulk,Tray

SKU:22ce9e75c4e1 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：MV
Mfr：TE Connectivity Corcom Filters
Package：Bulk,Tray
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：20 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

20MV1

Overview

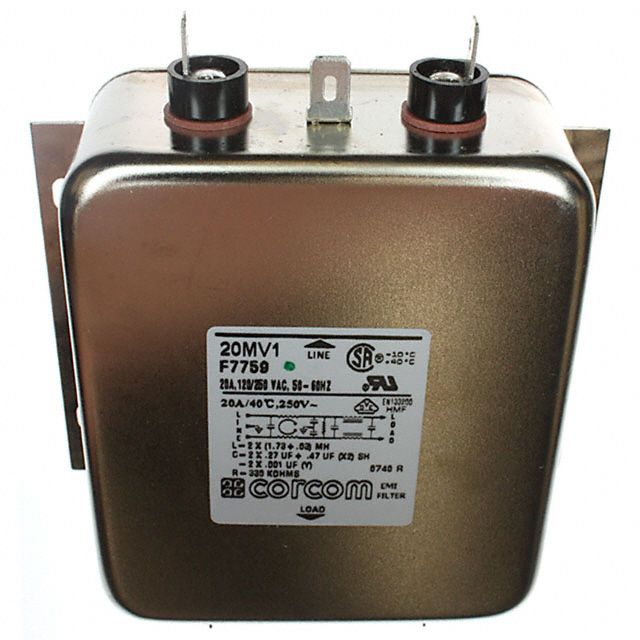

The TE Connectivity Corcom Filters 20MV1 is a single-phase EMC/EMI power line filter designed for chassis mounting. It supports a rated current of 20 A and operates at AC 250V with a frequency range of 50/60Hz. The component features a two-stage configuration and utilizes quick-connect terminals for circuit attachment. Certified by CSA, UR, and VDE, it functions within an operating temperature range of -10°C to 40°C.

Feature Summary

Provides dual-stage EMI/RFI suppression for single-phase power lines
Features flange-mount chassis installation for secure integration
Utilizes quick-connect terminal style for efficient wiring

Applications

Medical equipment power supplies
Industrial control systems
General-purpose electronic devices requiring EMI filtering

Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity documentation to ensure compatibility with system requirements. Confirm that the quick-connect terminal dimensions match existing harness specifications. Check for updated certification marks such as CSA, UR, or VDE on the latest datasheet versions to meet regional regulatory standards before finalizing procurement.

Selection Notes

Select this model when a single-phase filter with a 20A capacity is required for chassis-mounted applications. Ensure the operating environment stays within the specified -10°C to 40°C temperature range. Verify that the quick-connect termination style aligns with available PCB or wire harness options. Consider the two-stage design if higher attenuation performance is needed compared to single-stage alternatives.

Part Context

This component belongs to the Corcom MV series of power line filters from TE Connectivity. The series is engineered for general-purpose and medical applications requiring reliable EMI suppression. The 20MV1 variant specifically addresses high-current needs within the single-phase category, offering a balance of performance and standard mounting configurations.
