20VBAS5

Overview

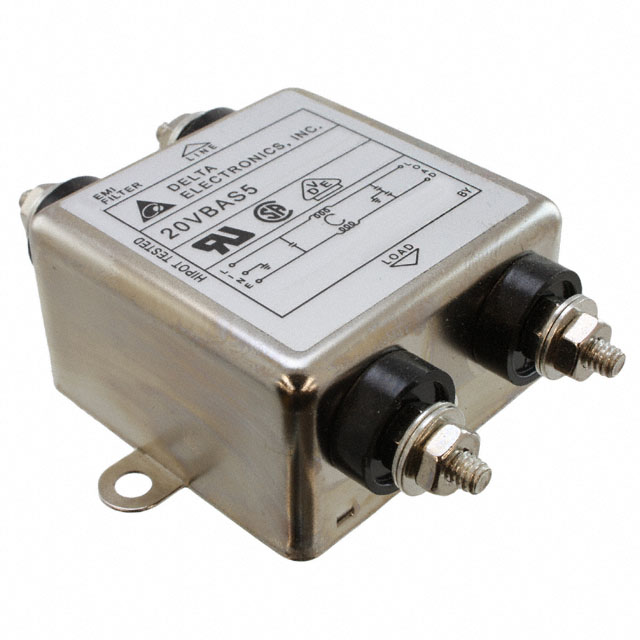

The Delta Electronics 20VBAS5 is a single-phase power line filter designed for chassis mounting. It features screw-to-screw termination and operates at a rated voltage of 250 VAC with a current capacity of 20 A. The component belongs to the TDT series and is intended for use in general-purpose filtering applications within industrial environments.

Feature Summary

• Provides electromagnetic interference suppression for single-phase AC power lines
• Designed for secure chassis mounting using screw terminals
• Constructed for durability in standard industrial operating conditions

Applications

• Industrial machinery control panels
• Power distribution units requiring EMI reduction
• General-purpose electronic equipment power inputs

Procurement Notes

Verify end-of-life status carefully, as discontinuation notifications indicate potential obsolescence. Confirm terminal compatibility and physical dimensions against existing chassis cutouts. Ensure replacement components meet identical electrical ratings for safety compliance.

Selection Notes

Select this model only if single-phase filtering at 20A is required. Verify that screw-terminal connections match existing wiring harnesses. Consider alternative series members if higher current or different termination styles are needed for the specific system architecture.

Part Context

This component is part of Delta Electronics' TDT series of power line filters. It serves as a specialized solution for noise attenuation in single-phase circuits, distinct from three-phase variants like the 20VBAG5 which utilize lug-lug terminations.

Replacement Considerations

Cross-reference tools suggest parametrically similar parts exist. Verify exact voltage, current, and termination type matches before substitution due to the discontinued status.
