Product Detailed Parameters
- Description：LINE FILTER 250VAC 20A CHASS MNT
- Series：DK
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：20 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (8-32)
- Inductance：540µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

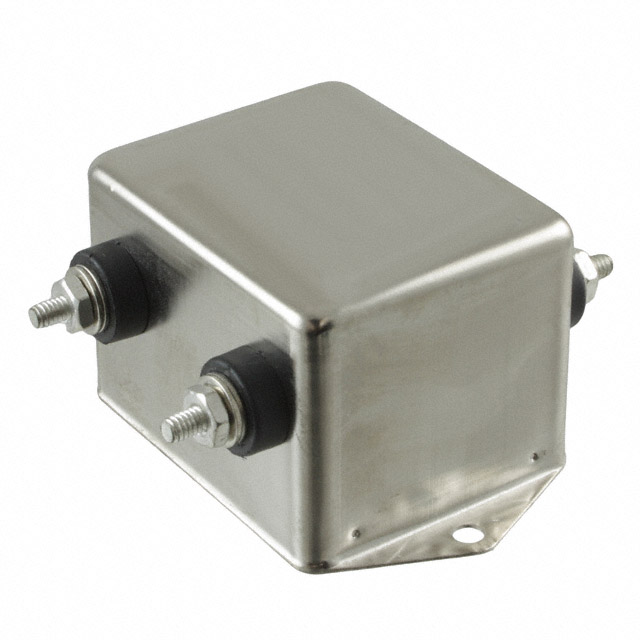

The TE Connectivity Corcom Filters 20VDK6 is a single-phase EMC/EMI power line filter module designed for industrial applications. It supports a maximum current of 20 A and operates at 250 V AC within a frequency range of 50 Hz to 60 Hz. The unit features a single-stage filtering configuration with threaded post terminals (8-32) for secure electrical connections. Designed for chassis mounting, it provides effective noise suppression in demanding environments.
Feature Summary
- Single-stage EMI/RFI noise attenuation for power lines
- Threaded bolt terminal interface for robust mechanical connection
- Chassis or panel mounting capability
Applications
- Industrial machinery power supplies
- Medical equipment power inputs
- Test and measurement instrumentation
Procurement Notes
Verify the specific datasheet version for the 20VDK6 model to confirm exact dimensional tolerances and terminal thread specifications. Ensure that the mounting hardware matches the required 8-32 threaded post configuration. Cross-reference the manufacturer's official documentation for any recent design changes or compliance updates before finalizing procurement orders.
Selection Notes
Select this component when a single-phase, high-current (20A) solution is required for chassis-mounted installations. The threaded post termination style is suitable for applications requiring durable, vibration-resistant connections compared to quick-connect types. Evaluate the single-stage performance against system noise requirements to ensure adequate attenuation levels are met.
Part Context
This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filtering solutions. The 20VDK6 represents a standard single-phase module within this portfolio, focusing on general-purpose noise reduction for AC power inputs in commercial and industrial sectors.
Replacement Considerations
Consult the official TE Connectivity Corcom Filters selector charts to identify equivalent single-stage modules with matching 20A ratings and threaded post interfaces. Verify compatibility with existing chassis cutouts and terminal spacing before substitution.
