20VK6

Overview

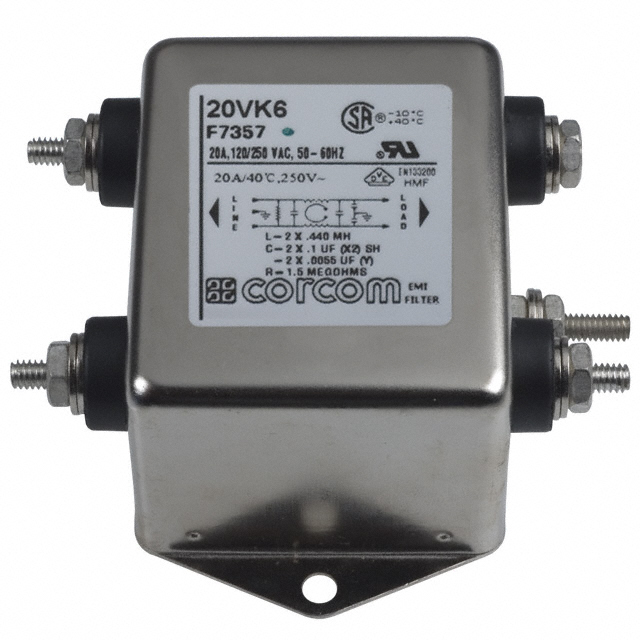

The TE Connectivity Corcom Filters 20VK6 is a single-phase EMI/RFI power line filter designed for chassis mounting. It supports a maximum current of 20 A and operates at voltages up to 250 V AC. The unit functions at standard frequencies of 50 Hz and 60 Hz. Electrical connections are established via stud terminals with thread bolt input/output interfaces. The device is certified under UL, CSA, and VDE standards.

Feature Summary

• Provides effective attenuation of electromagnetic interference and radio frequency noise for sensitive electronic loads
• Features robust chassis mounting design suitable for high-impedance load applications
• Utilizes threaded bolt stud terminals for secure electrical connection and mechanical stability

Applications

• Industrial machinery control panels requiring EMI suppression
• Medical equipment power inputs needing certified noise filtering
• Commercial audio-visual systems protecting against RF interference
• General purpose electronic devices operating on single-phase AC lines

Procurement Notes

Verify the specific terminal configuration matches the application requirements before ordering. Confirm that the chassis opening dimensions accommodate the flange mount style. Ensure the operating environment temperature remains within the specified range. Check for updated compliance certifications if required by local regulations. Validate that the 20 A rating exceeds the peak load current of the connected equipment.

Selection Notes

Select this model when a single-phase filter rated for 20 A is required. Choose the K series variant specifically for stud terminal connectivity. Consider this component for applications involving high-impedance loads where general-purpose filtering suffices. Verify that the 250 V AC rating aligns with the system voltage. Ensure the chassis mounting style fits the enclosure design constraints.

Part Context

This component belongs to the Corcom K Series, which specializes in general-purpose RFI power line filters. The series is recognized globally for providing reliable EMI/RFI filtering solutions. The 20VK6 represents a specific capacity within this lineup, offering a balance between current handling and noise suppression for industrial and commercial use cases.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternatives. Cross-reference part numbers such as 2-6609028-5 for potential equivalents. Ensure any substitute maintains identical voltage, current, and terminal specifications.
