Product Detailed Parameters
- Description：LINE FILTER 250VAC 20A CHASS MNT
- Series：VP
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：20 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (8-32)
- Inductance：-
Download product information
Overview

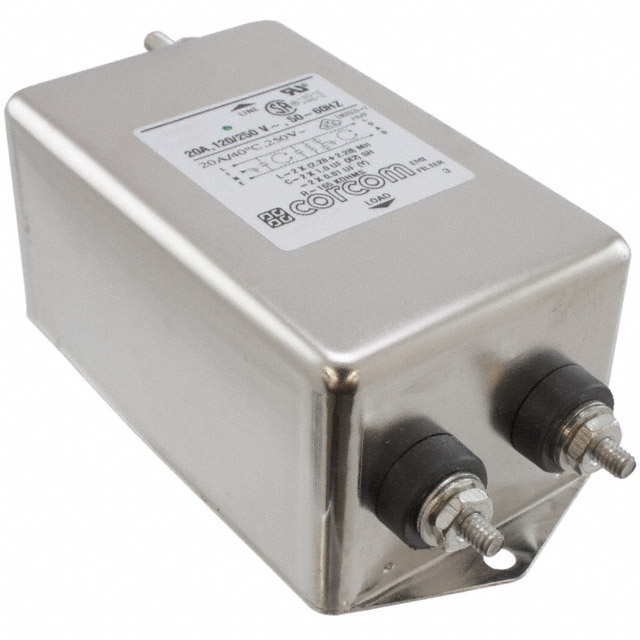

The TE Connectivity Corcom Filters 20VP6 is a single-phase EMC/EMI power line filter rated for 20 A and 250 VAC at 50/60 Hz. It features a two-stage filtering configuration designed to suppress electromagnetic interference in AC power circuits. The component utilizes quick connect terminals for circuit attachment and employs a flange mount installation method, secured via threaded posts (8-32). This module is intended for commercial applications requiring robust noise suppression within standard industrial voltage parameters.
Feature Summary
- Two-stage EMI/RFI filtering architecture
- Flange mount mechanical design with threaded posts
- Quick connect terminal interface
Applications
- Commercial electronic equipment power input
- Industrial machinery control panels
- General purpose AC power line noise suppression
Procurement Notes
Verify the specific terminal type and mounting hardware requirements against the official datasheet before procurement. Confirm that the flange mount dimensions and threaded post specifications match the chassis design. Ensure the 20 A current rating and 250 VAC voltage rating are sufficient for the target application's electrical load. Check for RoHS compliance status if required by project specifications.
Selection Notes
Select this model when a two-stage filtering solution is required for single-phase AC lines up to 20 A. The flange mount style is suitable for panel or chassis integration where threaded post securing is preferred over snap-in modules. Consider the quick connect termination style for ease of assembly compared to soldered options. Verify compatibility with 50/60 Hz operating frequencies.
Part Context
The 20VP6 belongs to the VP series of power line filters from TE Connectivity Corcom Filters. This series focuses on single-phase EMC/EMI suppression for commercial and industrial environments. The component represents a modular approach to power entry filtration, distinct from feedthrough capacitors or IEC inlet modules, offering integrated filtering with direct wiring capabilities.
Replacement Considerations
Consult the official TE Connectivity Corcom Filters selector charts for direct replacements. Cross-reference part numbers such as 6609038-1 for similar high-current flange mount filters, ensuring identical electrical ratings and mounting configurations are maintained.
