20VQ1

Overview

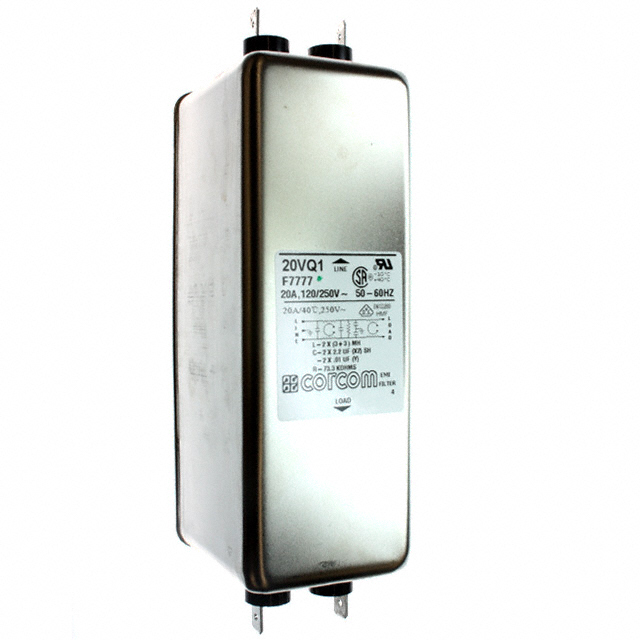

The TE Connectivity Corcom Filters 20VQ1 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features a two-stage configuration with fast-on terminal connections. The component operates at a rated AC voltage of 250V and supports a current rating of 20A at 50/60Hz frequencies. Certified by CSA, UR, and VDE agencies, it functions within an operating temperature range of -10°C to 40°C. The unit complies with RoHS3 standards and is classified under ECCN EAR99.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Fast-on terminal connection style for secure wiring
• Chassis mounting design for stable installation
• Compliance with VDE 0871 standards below and above 150 kHz

Applications

• Industrial equipment requiring EMI/RFI suppression
• Medical devices needing low leakage current performance
• General purpose electronic systems meeting VDE 0871 requirements

Procurement Notes

Verify the specific datasheet version before procurement, as component specifications may evolve. Confirm that the fast-on terminal dimensions match your wiring harness requirements. Ensure the chassis mounting hole dimensions align with your enclosure design. Check for any recent product change notices (PCNs) that might affect form, fit, or function. Validate certification marks against local regulatory requirements for your target market.

Selection Notes

Select this model when a two-stage filter is required for 20A applications. Consider the chassis mount style if panel mounting is not feasible. Verify that the 250VAC rating meets your system's voltage needs. Ensure the operating temperature range suits your environmental conditions. Compare leakage current specifications if strict safety isolation is necessary for medical or sensitive applications.

Part Context

This component belongs to the TE Connectivity Corcom Q series, which specializes in high-current RFI filters. The series offers flange-mounted options for robust mechanical stability. It is part of a broader portfolio of power line filters designed for industrial and commercial use. The brand emphasizes compliance with international safety and electromagnetic compatibility standards.

Replacement Considerations

FN2080A-10-06 is listed as a similar substitute part number from TE Connectivity Schaffner.
