20VR6

Overview

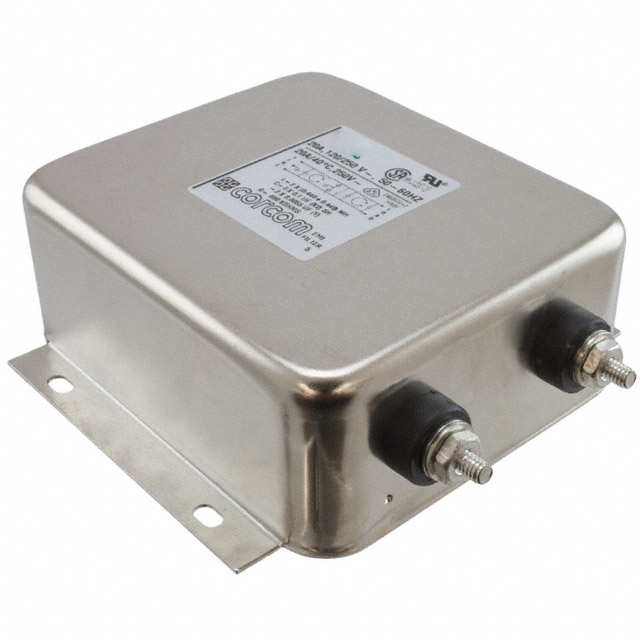

The TE Connectivity Corcom Filters 20VR6 is a single-phase EMC/RFI line filter designed for chassis mounting. It features a maximum current rating of 20 A and a voltage rating of 250 VAC at 50/60 Hz. The unit utilizes a two-stage filtering architecture to suppress electromagnetic interference. Electrical connections are established via threaded posts with an 8-32 thread specification, ensuring secure mechanical and electrical integration within power entry applications.

Feature Summary

• Two-stage EMI/RFI suppression architecture
• Chassis mount configuration with threaded post termination

Applications

• Industrial equipment power supplies
• Medical device power inputs
• Commercial electronic systems requiring EMI reduction

Procurement Notes

Verify the specific datasheet version for the 20VR6 model to confirm exact attenuation curves and thermal derating characteristics. Ensure that the receiving system supports the 8-32 threaded post interface for proper mechanical installation. Confirm compliance requirements such as UL or CSA certifications match the target market regulations before finalizing procurement specifications.

Selection Notes

Select this component when a single-phase solution with a 20 A continuous current capacity is required. The 250 VAC rating suits standard commercial and industrial line voltages. The threaded post termination method is preferred over quick-connect terminals for high-current applications requiring robust mechanical stability and lower contact resistance under vibration conditions.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for noise suppression. The 20VR6 variant specifically addresses single-phase applications where moderate current handling and chassis-based installation are necessary. It serves as a critical interface between the AC mains supply and sensitive downstream electronics.

Replacement Considerations

Cross-reference with other Corcom single-phase filters rated for 20 A and 250 VAC. Verify that alternative parts maintain the same 8-32 threaded post terminal style and chassis mounting footprint to ensure compatibility with existing panel cutouts and wiring harnesses.
