20VSK6

Overview

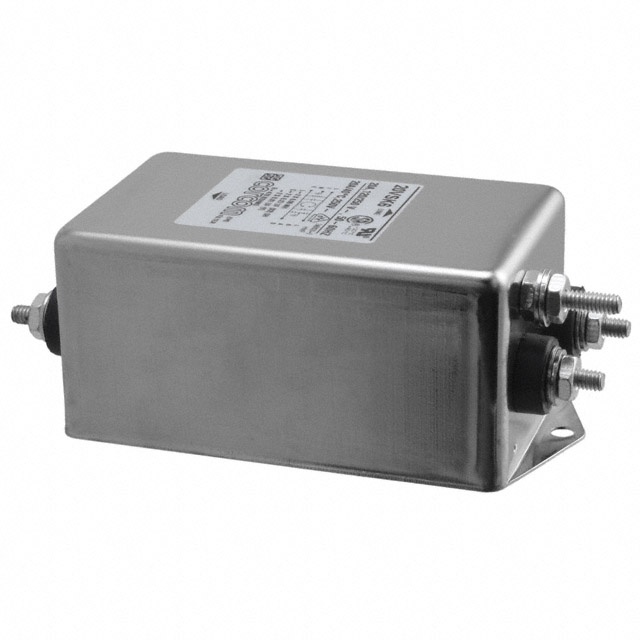

The TE Connectivity Corcom Filters 20VSK6 is a single-phase RFI power line filter designed for flange mounting with threaded bolt terminals. It supports a maximum current of 20 A and a voltage rating of 250 V AC at 50 Hz or 60 Hz operating frequencies. The unit measures 127.3 mm in length, 57.2 mm in height, and 45.2 mm in depth. It operates within a temperature range of -10°C to +40°C and complies with RoHS standards.

Feature Summary

• Provides electromagnetic interference suppression for single-phase AC power lines
• Features robust flange mounting configuration with threaded bolt connections
• Designed for commercial applications requiring certified compliance

Applications

• Industrial machinery power input stages
• Commercial equipment EMI mitigation
• Single-phase AC power distribution systems

Procurement Notes

Verify the specific manufacturing date code against project requirements prior to ordering. Confirm that the threaded bolt terminal style matches the intended chassis interface. Ensure the ambient operating environment remains within the specified -10°C to +40°C range to maintain performance integrity.

Selection Notes

Select this component when a single-phase 20 A capacity is required for flange-mounted installations. The threaded bolt termination offers secure mechanical attachment compared to quick-connect alternatives. Consider the physical dimensions of 127.3 x 57.2 x 45.2 mm for enclosure space planning.

Part Context

This part belongs to the Corcom SK series, which focuses on single-phase filters rated between 3 and 10 Amps, though this specific variant handles 20 A. The series emphasizes reliable EMI/RFI attenuation for general commercial and industrial power line protection needs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
