20VT1

Overview

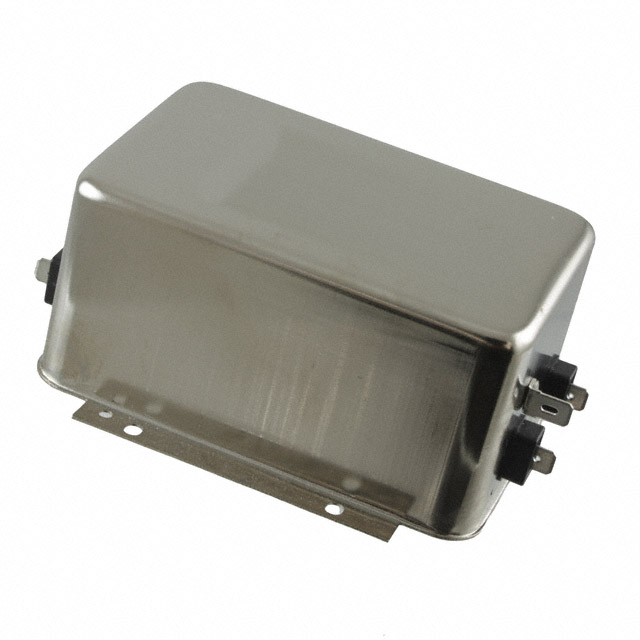

The TE Connectivity Corcom Filters 20VT1 is a single-phase EMC/EMI power line filter module designed for flange mount installation. It features a two-stage configuration with quick connect terminals rated for 20 A at 250 VAC and 50/60 Hz operation.

Feature Summary

• Two-stage EMI/RFI filtering architecture
• Flange mount mechanical design
• Quick connect terminal interface

Applications

• Industrial equipment power entry
• Medical device power supplies
• General purpose AC power filtering

Procurement Notes

Verify the specific datasheet version for the 20VT1 part number to confirm current RoHS compliance status and exact dimensional tolerances. Ensure the mounting flange dimensions match the chassis opening requirements before finalizing procurement specifications.

Selection Notes

Select this component when a two-stage filtering solution is required for 20 A applications. The flange mount style provides secure mechanical attachment, while the quick connect terminals facilitate rapid assembly into power entry modules.

Part Context

This component belongs to the Corcom T series of power line filters. It is manufactured by TE Connectivity under the Corcom Filters brand, which specializes in electromagnetic interference suppression solutions for commercial and industrial electronics.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation.
