20VV6

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：V
Mfr：TE Connectivity Corcom Filters
Package：Bulk

SKU:2dbb034a5131 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：V
Mfr：TE Connectivity Corcom Filters
Package：Bulk
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：20 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Threaded Post (8-32)
Inductance：-

Download product information

20VV6

Overview

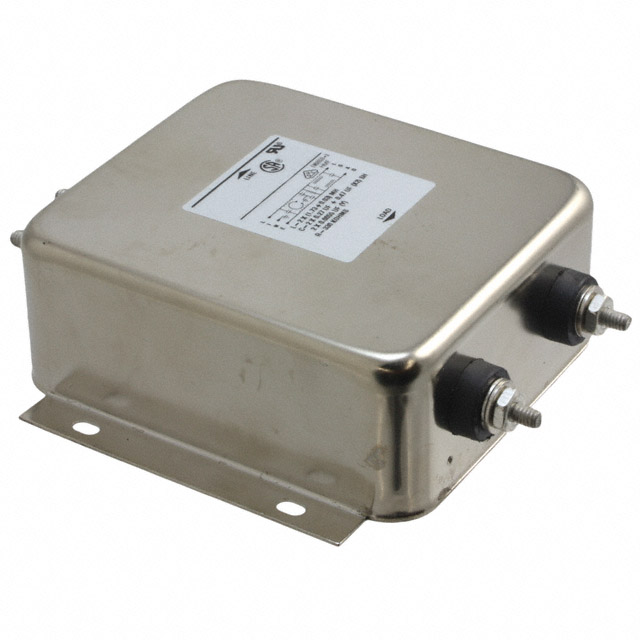

The TE Connectivity Corcom Filters 20VV6 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated current of 20 A and operates at AC voltages up to 250V across 50/60Hz frequencies. The component features a two-stage filtering configuration with threaded post terminals (8-32). Certified by CSA, UR, and VDE, it is suitable for general industrial applications requiring robust emission control.

Feature Summary

Provides effective EMI/RFI noise suppression through a two-stage filtering architecture
Features durable threaded post connections for secure mechanical and electrical attachment
Designed for direct chassis mounting to facilitate integration into equipment enclosures

Applications

Industrial machinery power input stages
Medical equipment electromagnetic compatibility
General purpose electronic systems requiring emission control

Procurement Notes

Verify the specific terminal configuration matches the design requirements, as this model utilizes threaded posts rather than quick-connect tabs. Confirm that the chassis mounting holes align with the physical dimensions specified in the official datasheet. Ensure the operating environment remains within the certified temperature range to maintain performance integrity and compliance with safety standards.

Selection Notes

Select this component when a high-current capacity of 20 A is required alongside significant attenuation capabilities. The two-stage design offers superior noise reduction compared to single-stage alternatives. Consider the threaded post termination style if higher mechanical stability is needed compared to standard blade connectors. Verify voltage ratings against the specific system requirements before implementation.

Part Context

This part belongs to the Corcom V and W series, which are recognized globally for providing multipurpose power line RFI filters. These components are widely used for emission control in various electronic applications. The series is known for reliability and compliance with international safety standards, making them a standard choice for industrial and commercial power filtering needs.
