20VW6

Overview

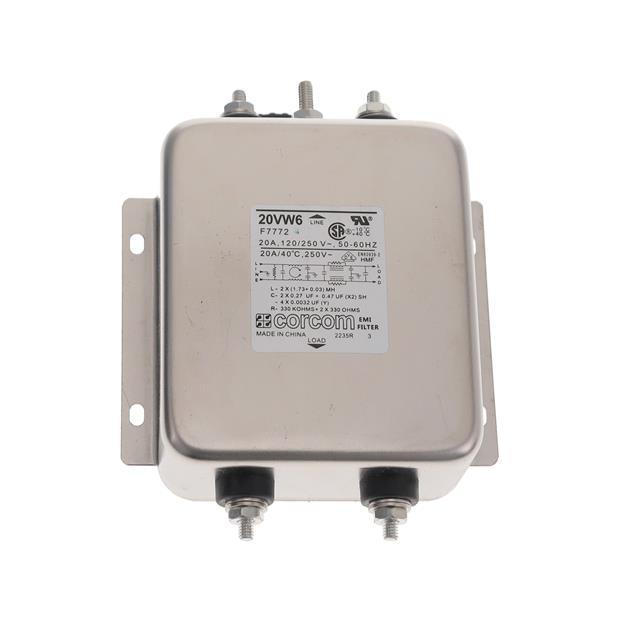

The TE Connectivity Corcom Filters 20VW6 is a single-phase EMC/EMI power line filter module designed for chassis mounting. It features a two-stage filtering configuration with threaded posts (8-32) for termination. The component is rated for 20 A current and 250 VAC voltage at 50/60 Hz operating frequencies. This multipurpose RFI filter provides emission control for general applications.

Feature Summary

• Two-stage EMI/RFI filtering architecture
• Threaded post termination style
• Chassis mount installation type

Applications

• General purpose emission control
• Single-phase power line filtering

Procurement Notes

Verify the specific datasheet version and mechanical drawings before integration, as manufacturing specifications may evolve. Confirm that the 8-32 threaded post dimensions align with your chassis panel requirements. Ensure the 20A rating and two-stage topology meet your system's electromagnetic interference suppression needs.

Selection Notes

Select this model when a robust two-stage solution is required for single-phase AC lines up to 250VAC. The threaded post interface suits applications where screw-down connections are preferred over quick-connect terminals. Consider the chassis mounting footprint and verify thermal performance within the specified operating range.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for industrial and commercial equipment. The 20VW6 variant specifically addresses high-current single-phase applications requiring significant noise attenuation through its dual-stage design.

Replacement Considerations

Public confirmed substitute part numbers: None identified.
