2100HT-330-H-RC

Fixed Inductors Overview

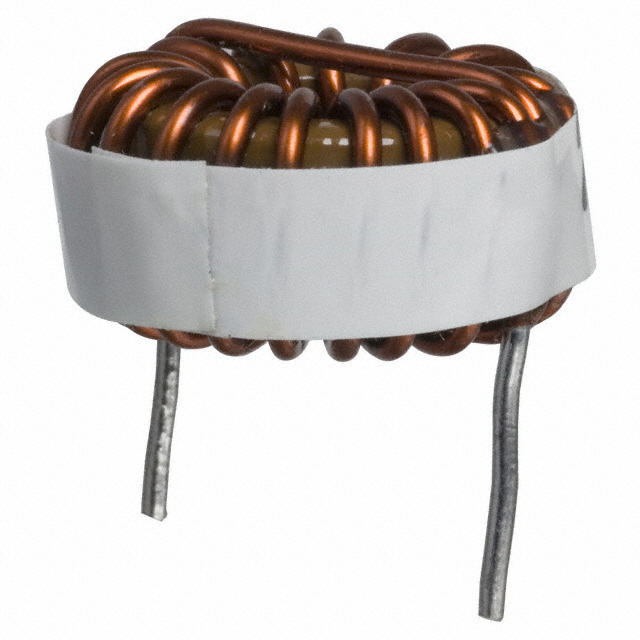

The Bourns 2100HT-330-H-RC is a fixed toroidal inductor from the high-temperature series. It features a nominal inductance of 33 µH and a shielded magnetic core design. The component supports a maximum DC current of 6.1 A with a maximum DC resistance of 31 mΩ. It utilizes a radial horizontal mounting configuration for open placement. The device operates at a test frequency of 1 kHz.

Fixed Inductors Feature Summary

• Shielded toroidal construction minimizes electromagnetic interference
• High-temperature rated design for demanding environments
• Radial horizontal mounting orientation for flexible board layout

Fixed Inductors Applications

• DC/DC converter circuits
• EMI filtering applications
• Power supply input/output stages

Fixed Inductors Procurement Notes

Verify the specific suffix codes against official documentation to confirm tolerance and packaging specifications. Ensure the selected variant matches the required thermal performance and current ratings for the target application environment before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when high current handling and thermal stability are critical requirements. The shielded design is suitable for space-constrained layouts requiring reduced magnetic field leakage. Verify that the 6.1 A saturation current meets the peak load demands of the power stage.

Fixed Inductors Part Context

This part belongs to the 2100HT series of high-temperature, high-current toroid inductors manufactured by Bourns Inc. The series is engineered for robust performance in power conversion systems where reliability under thermal stress is essential.

Fixed Inductors Replacement Considerations

Consult official substitution guides for compatible alternatives within the same series or equivalent performance classes. Verify pin compatibility and electrical parameters before replacing.
