Edgeboard Connectors Overview

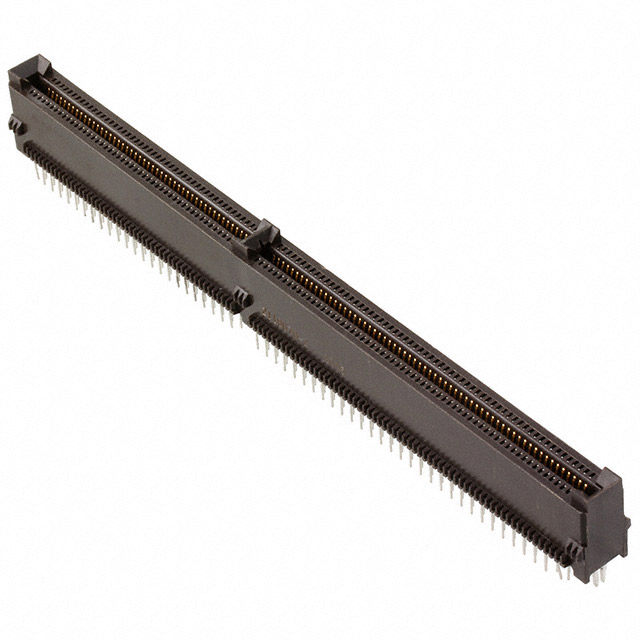

The TE Connectivity AMP Connectors part number 2110070-2 is a dual female edge connector designed for high-density signal transmission. It features 220 positions with a 0.100-inch (2.54 mm) pitch, adhering to the DIN 41612 standard. This component utilizes a through-hole mounting style for secure board attachment and is engineered for reliable electrical contact in demanding industrial environments.

Edgeboard Connectors Feature Summary

• Supports high-density interconnect applications via a 220-position layout
• Ensures stable mechanical connection through robust through-hole mounting
• Complies with established DIN 41612 interface standards for compatibility

Edgeboard Connectors Applications

• Industrial automation control systems
• Data acquisition hardware modules
• Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer datasheet to confirm pinout configurations and mating partner requirements. Ensure that the selected PCB footprint matches the precise dimensional tolerances defined by the DIN 41612 standard. Cross-reference the official documentation to validate material specifications and environmental ratings prior to final integration.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count interface is required for complex signal routing. The 0.100-inch pitch offers a balance between density and manufacturability. Consider the mechanical stability provided by the through-hole termination method for applications subject to vibration or thermal cycling.

Edgeboard Connectors Part Context

This connector belongs to the broader family of DIN 41612 connectors manufactured by TE Connectivity. These components are widely recognized for their standardized dimensions and reliable performance in heavy-duty industrial settings. The series supports various contact arrangements and housing styles to meet diverse system integration needs.

Edgeboard Connectors Replacement Considerations

Consult official cross-reference lists for compatible alternatives from other manufacturers producing DIN 41612 compliant parts. Verify that any substitute maintains identical pin counts, pitch measurements, and mounting characteristics to ensure seamless interchangeability.
