Product Detailed Parameters
- Description：PIN HEADER, DOUBLE ROW, 6 PIN, S
- Series：2111
- Mfr：Oupiin
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.146" (3.70mm)
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：0.323" (8.20mm)
- Insulation Height：0.059" (1.50mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：Gold
- Contact Material：Brass
- Insulation Material：Polyamide (PA6T), Nylon 6T
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2A
- Voltage Rating：125V
Download product information
Overview

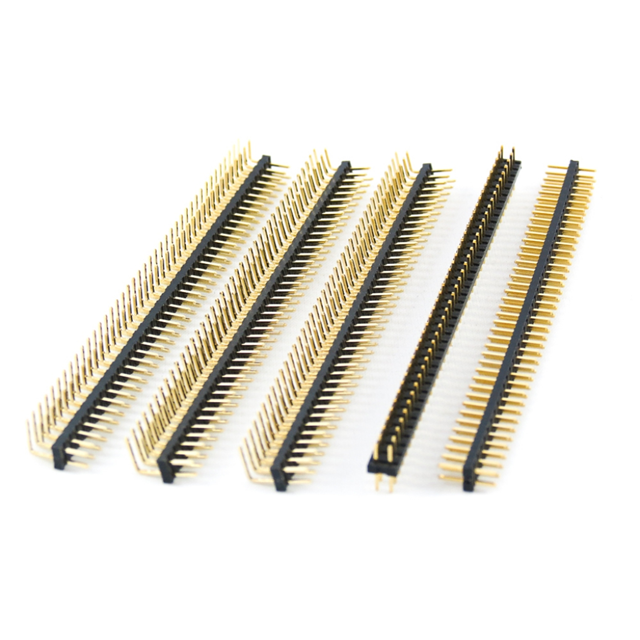

The Oupiin 2111-2X03G00SB is a board connector featuring 6 contacts arranged in 2 rows. It is a male, right-angle header with solder terminals. The component has a body width of 0.157 inch, depth of 0.207 inch, and length of 0.295 inch. Contact finish is gold on copper alloy. Dielectric withstand voltage is 500VAC. Contact resistance is 20 mΩ.
Feature Summary
- Right-angle mounting configuration for space-constrained PCB layouts
- Gold-plated contacts ensure reliable signal transmission
- Male pin design mates with standard socket connectors
Applications
- Communications equipment
- Wireless infrastructure
- Enterprise systems
Procurement Notes
Verify the specific part number against official Oupiin documentation to confirm contact count and orientation. Ensure compatibility with mating sockets such as the 2106, 2141, 2143, or 2148 series. Check RoHS compliance status if required by project specifications. Confirm right-angle orientation matches the mechanical design constraints before ordering.
Selection Notes
Select this component when a low-profile, right-angle connection is required between circuit boards. The 2.0mm pitch allows for moderate density. Verify that the mating connector supports the male pin interface. Consider the 500VAC dielectric rating for appropriate insulation requirements in the target application environment.
Part Context
This part belongs to the Oupiin 2111 series of 2.0mm pitch headers. These components are designed for general-purpose interconnection in industrial and commercial electronics. The series offers various configurations including straight and right-angle options with different contact counts.
Replacement Considerations
Compatible mating sockets include Oupiin 2106, 2141, 2143, and 2148 series. Ensure replacement parts maintain the same 2.0mm pitch and right-angle orientation for mechanical fit.
