Product Detailed Parameters
- Description：PIN HEADER, SINGLE ROW, 2 PIN, R
- Series：2112
- Mfr：Oupiin
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：2
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.154" (3.90mm)
- Contact Length - Post：0.110" (2.80mm)
- Overall Contact Length：-
- Insulation Height：0.079" (2.00mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：Gold
- Contact Material：Brass
- Insulation Material：Polybutylene Terephthalate (PBT)
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：1A
- Voltage Rating：-
Download product information
Overview

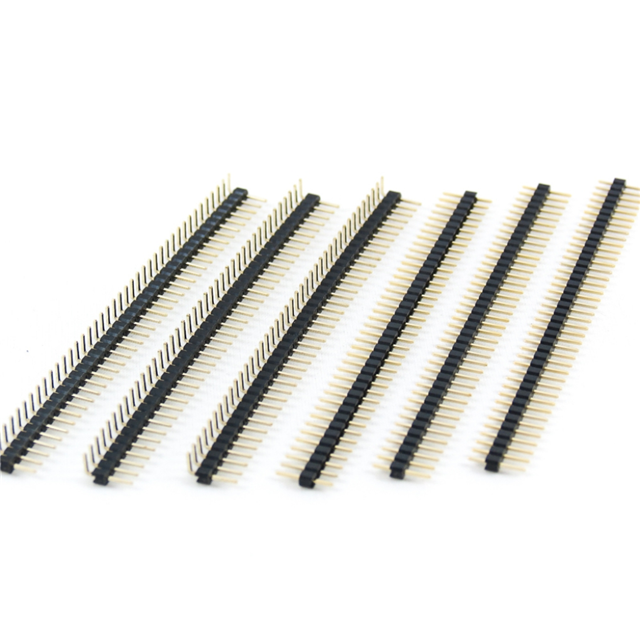

The Oupiin 2112-1X02G00RB is a single-row male pin header featuring two contacts with a 0.079-inch (2.00mm) pitch. Designed for through-hole mounting, this right-angle connector utilizes brass contacts with gold plating over a nickel barrier to ensure reliable signal transmission. The component employs glass-filled polybutylene terephthalate insulation and offers a contact resistance of 20 mΩ alongside an insulation resistance of 5 GΩ.
Feature Summary
- Right-angle configuration facilitates compact board layout integration
- Gold-plated brass contacts provide corrosion resistance and stable conductivity
- Through-hole termination method ensures secure mechanical attachment
Applications
- General electronic circuit interconnections
- Communication equipment internal wiring
- Industrial control system modules
Procurement Notes
Verify the specific suffix codes against official Oupiin documentation to confirm exact physical dimensions and plating specifications. Ensure compatibility with mating socket connectors regarding pitch and row configuration. Cross-reference manufacturer datasheets for precise thermal and electrical ratings before finalizing procurement decisions.
Selection Notes
Select this model when a low-profile, right-angle connection is required for minimal two-contact interfaces. The 2.00mm pitch suits applications where standard 2.54mm spacing is excessive. Consider the straight versus right-angle orientation based on available PCB real estate and mating connector alignment requirements.
Part Context
This component belongs to the Oupiin 2112 series, which specializes in 2.0mm pitch rectangular headers. The series includes various configurations such as single and double rows, different lengths, and both straight and right-angle orientations. These connectors are widely utilized in computer and industrial equipment sectors requiring standardized interconnect solutions.
Replacement Considerations
Direct substitutes within the same series include variants like 2112-1X02G00SB or other 2112-1X02 models differing only in housing color or minor packaging attributes. Verify that any replacement maintains the identical 0.079-inch pitch and right-angle form factor to ensure mechanical fit.
