Product Detailed Parameters
- Description：PIN HEADER, DOUBLE ROW, 44 PIN,
- Series：2115
- Mfr：Oupiin
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：44
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.157" (4.00mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.059" (1.50mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：Gold
- Contact Material：Brass
- Insulation Material：Polyamide (PA6T), Nylon 6T
- Features：Board Guide
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2A
- Voltage Rating：-
Download product information
Overview

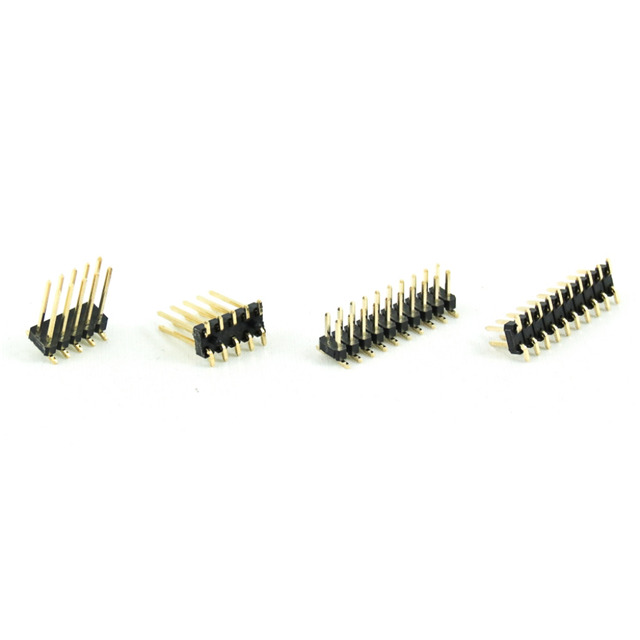

The Oupiin 2115-2X22G00DN-4B is a surface mount board-to-board connector featuring a male pin header configuration. It comprises 44 positions arranged in two rows with a 2.00mm (0.079 inch) pitch. The component is designed for high-volume manufacturing applications, utilizing fully automated production processes to ensure consistent quality and reliability across communication, computer, and industrial sectors.
Feature Summary
- Surface mount mounting type for automated PCB assembly
- Male pin header style for board-to-board interconnection
- Dual row configuration providing 44 contact positions
- Manufactured under ISO 9001 certified quality systems
Applications
- Computer system interconnections
- Communication equipment assemblies
- Industrial manufacturing control boards
- Electrical equipment circuit connections
Procurement Notes
Verify the specific ordering suffix against official Oupiin documentation to confirm exact physical dimensions and termination specifications. Ensure compatibility with surface mount assembly processes. Confirm RoHS compliance status through current manufacturer datasheets or authorized distributor declarations prior to integration into final designs.
Selection Notes
Select this component when a 2.00mm pitch male header is required for double-row board-to-board connections. Consider the 44-position count and surface mount footprint requirements. Verify housing height and mating partner specifications against the target PCB design constraints before finalizing the bill of materials.
Part Context
This part belongs to the Oupiin 2115 series, which utilizes a 2.00mm pitch for SMD pin headers. The series offers various configurations including single and dual rows with different insulator heights. Oupiin manufactures these connectors using automated facilities in Taiwan and China, adhering to international safety standards such as UL and CSA.
Replacement Considerations
Cross-reference alternative suppliers offering 2.00mm pitch, 44-position, dual-row male headers. Verify mechanical footprint, pin spacing, and electrical ratings match exactly. Consult Oupiin technical support for officially confirmed substitute part numbers if direct replacement is necessary.
