2130S1*4GSE

Headers, Male Pins Overview

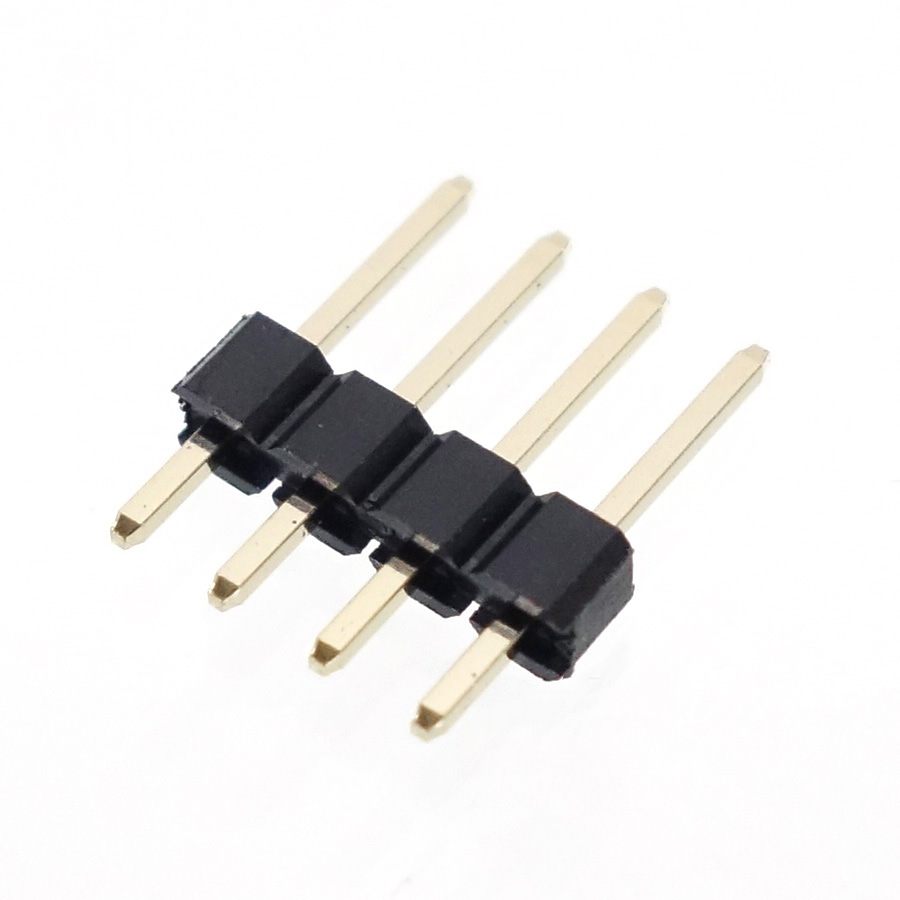

The Marutsuelec 2130S1*4GSE is a vertical male pin header connector designed for through-hole mounting on printed circuit boards. It features four positions with a standard 0.100-inch (2.54mm) pitch, ensuring compatibility with common electronic assembly standards. The component utilizes a single-row configuration to facilitate straightforward PCB layout and reliable electrical connections in various consumer and industrial applications.

Headers, Male Pins Feature Summary

• Vertical orientation for space-efficient board mounting
• Male pin contact type for secure mating
• Through-hole technology for robust mechanical stability

Headers, Male Pins Applications

• General-purpose electronic assemblies
• Consumer electronics interconnects
• Industrial control panel wiring

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Marutsuelec documentation to confirm exact physical dimensions and plating specifications. Ensure that the selected variant matches the required current rating and voltage withstand capabilities for the target application environment. Cross-reference the part number with authorized distributors to confirm authenticity and availability status prior to finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, vertical interconnection solution is required for four-channel signal or power transmission. Consider the through-hole mounting method for applications demanding high mechanical durability during vibration or thermal cycling. Evaluate the 2.54mm pitch requirement against existing board footprints to ensure proper alignment and solder joint integrity during assembly processes.

Headers, Male Pins Part Context

This connector belongs to Marutsuelec's series of standard pin headers, which are widely used in general electronics manufacturing. The product line emphasizes reliability and ease of use for mass production environments. As a passive interconnect component, it serves as a fundamental building block for establishing electrical pathways between different circuit board sections or peripheral devices.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 4-position, 2.54mm pitch vertical male headers from manufacturers such as Samtec, Molex, or JST. Verify that alternative parts match the original height, contact material, and termination style to maintain mechanical fit and electrical performance without requiring PCB redesign.
