2130S1*5GSE

Headers, Male Pins Overview

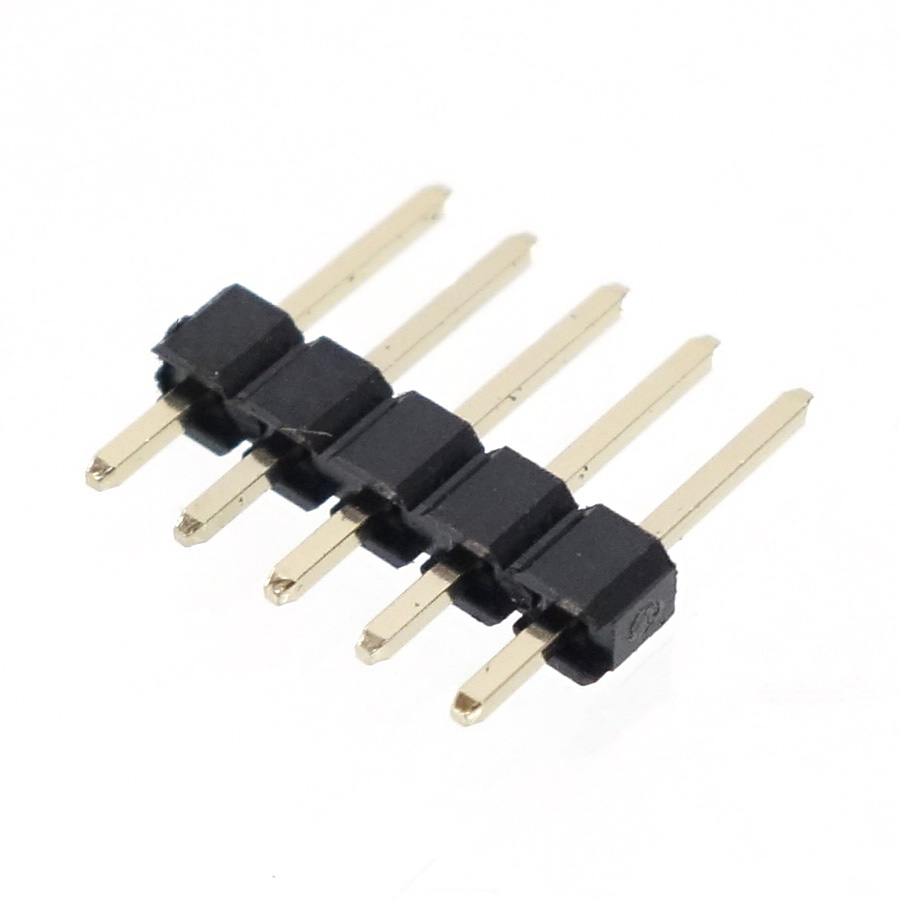

The Marutsuelec 2130S1*5GSE is a through-hole connector header designed for PCB mounting. It features five positions with male pin contacts arranged in a single row. The connector utilizes a 0.100-inch (2.54mm) pitch for contact spacing, ensuring compatibility with standard electronic assembly practices. This component serves as a reliable interface point for circuit connections.

Headers, Male Pins Feature Summary

• Through-hole mounting style for secure PCB attachment
• Male pin contact type for mating with sockets or cables
• Single row configuration with five distinct positions

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Prototype board development and testing setups
• Consumer electronics assembly requiring standard pin headers

Headers, Male Pins Procurement Notes

Verify the specific part number 2130S1*5GSE against official Marutsuelec documentation to confirm dimensional tolerances and material specifications. Ensure that the through-hole footprint on the target PCB matches the 2.54mm pitch requirement. Cross-reference manufacturer datasheets for soldering temperature profiles and mechanical durability ratings prior to integration into final designs.

Headers, Male Pins Selection Notes

Select this component when a standard 2.54mm pitch male header is required for through-hole applications. Consider the single-row layout and five-position count to ensure adequate connectivity for the specific signal or power lines. Evaluate mechanical stability requirements and verify that the housing material meets environmental constraints for the intended operating conditions.

Headers, Male Pins Part Context

This component belongs to the category of board-to-board or cable-to-board connectors, specifically functioning as a pin header. It provides a standardized interface solution within electronic assemblies, facilitating easy connection between rigid printed circuit boards and flexible wiring harnesses or socket-based modules.

Headers, Male Pins Replacement Considerations

Compatible substitutes include generic 5-position, 2.54mm pitch through-hole male headers from other manufacturers. Verify that alternative parts maintain identical physical dimensions, contact plating specifications, and thermal resistance characteristics to ensure seamless interchangeability without redesigning the PCB footprint.
