2130S1*6GSE

Headers, Male Pins Overview

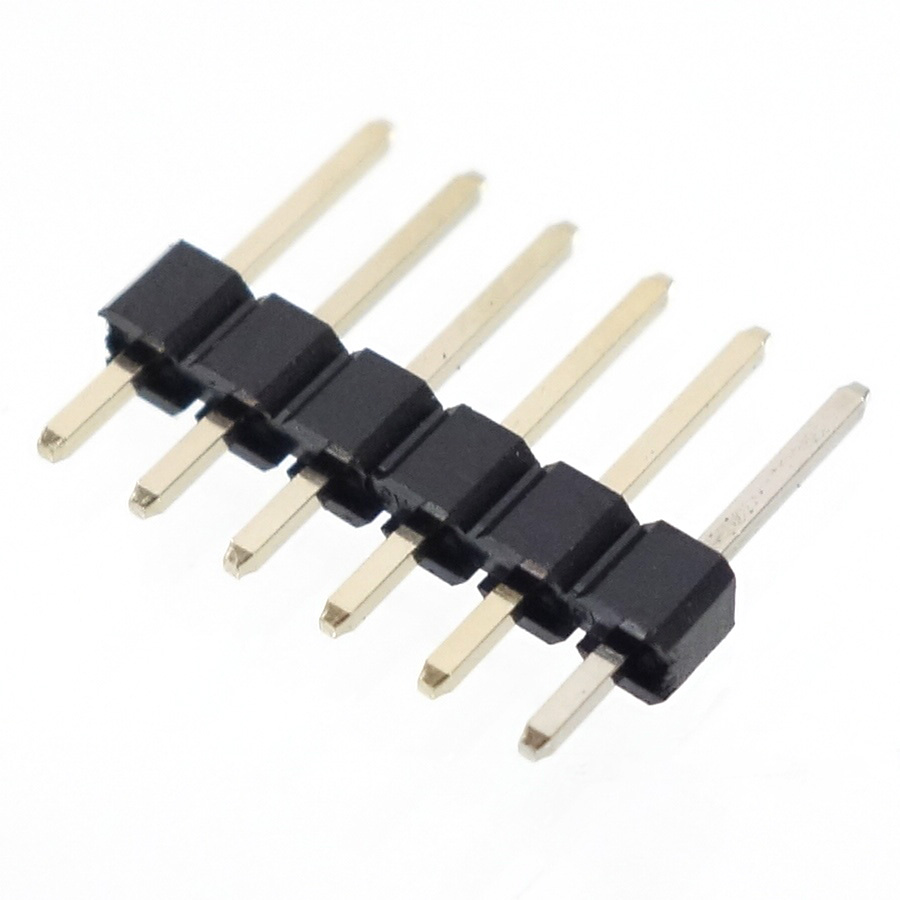

The Marutsuelec 2130S1*6GSE is a male pin header connector designed for through-hole mounting on printed circuit boards. It features a single row of six contacts with a standard 0.100 inch (2.54mm) pitch, ensuring compatibility with common electronic assembly standards. The straight housing configuration facilitates direct board connections in space-constrained environments. This component supports reliable electrical interconnections for signal and power distribution in various consumer and industrial applications.

Headers, Male Pins Feature Summary

• Through-hole mounting technology for secure PCB attachment
• Single row male pin contact configuration
• Standard 2.54mm pitch spacing for universal compatibility

Headers, Male Pins Applications

• General purpose electronic circuit assemblies
• Consumer electronics device interconnections
• Industrial control board signal routing

Headers, Male Pins Procurement Notes

Verify the specific pin count matches the required six-position configuration before ordering. Confirm that the through-hole mounting style aligns with the target PCB design specifications. Ensure the straight header orientation fits within the mechanical enclosure constraints. Check RoHS compliance requirements if operating in regulated markets. Validate supplier authenticity to guarantee component quality and traceability.

Headers, Male Pins Selection Notes

Select this connector when a fixed six-position interface is required for permanent or semi-permanent board-to-board connections. Consider the through-hole method for superior mechanical stability compared to surface mount alternatives. Evaluate the straight profile against available vertical clearance on the assembly. Assess current carrying capacity needs relative to the application load requirements.

Headers, Male Pins Part Context

This component belongs to the 2130S1 series of headers manufactured by Marutsuelec. The series offers various position counts while maintaining consistent 2.54mm pitch dimensions. These connectors are widely used in general electronics manufacturing for their reliability and standardized form factor. The specific model denotes the six-pin variant within this established product line.

Headers, Male Pins Replacement Considerations

Compatible substitutes must maintain the 2.54mm pitch, six-position count, and through-hole mounting style. Verify that alternative manufacturers offer identical straight header configurations. Ensure mechanical dimensions match existing PCB footprints to avoid rework. Confirm material and plating specifications meet original performance criteria.
