2131D2*10GSE

Headers, Male Pins Overview

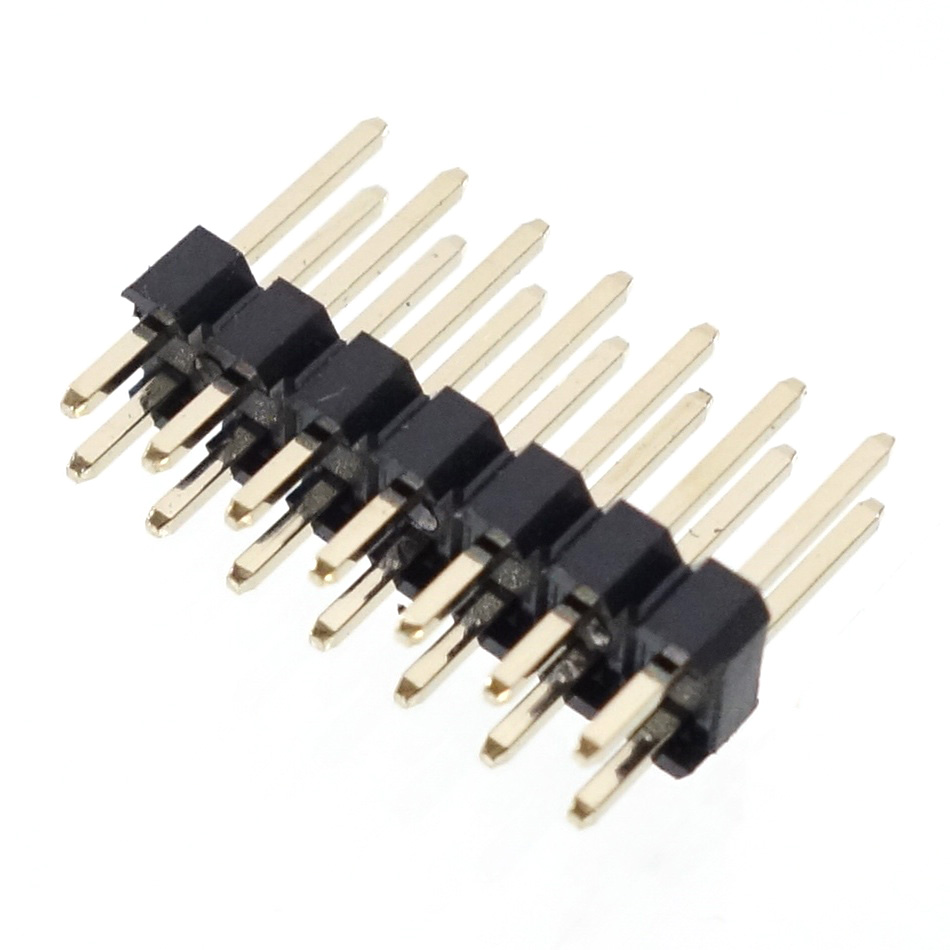

The Marutsuelec 2131D2*10GSE is a vertical male pin header connector designed for through-hole mounting. It features a 10-position configuration with a 2.54 mm (0.100 inch) pitch. The component utilizes an insulator made from PBT material reinforced with 30% glass fiber to ensure thermal stability and mechanical strength. This connector is part of the standard interconnect series, providing reliable electrical connections in printed circuit board assemblies.

Headers, Male Pins Feature Summary

• Vertical orientation for space-efficient PCB integration
• Through-hole termination method for secure soldering
• Glass-fiber reinforced PBT insulator for durability

Headers, Male Pins Applications

• General electronic circuit board interconnections
• Industrial control panel wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify that the specific suffix *10GSE corresponds exactly to the 10-position variant. Confirm the lead time and minimum order quantities with the authorized distributor, as availability may vary. Ensure the purchasing documentation explicitly references the Marutsuelec manufacturer to avoid generic substitutes that may lack the specified glass-fiber reinforced properties.

Headers, Male Pins Selection Notes

Select this component when a vertical, 10-pin through-hole header is required. The 2.54 mm pitch is standard for many legacy and general-purpose designs. Consider the PBT+GF30 material if high-temperature soldering processes or robust mechanical environments are anticipated. Verify that the board layout accommodates the vertical profile and the specific footprint dimensions associated with this series.

Headers, Male Pins Part Context

This part belongs to the Marutsuelec header connector family, which offers various pin counts and configurations. The 2131D2 series specifically denotes vertical male pins. The *10GSE suffix identifies the 10-position variant within this product line, distinguishing it from other pin counts like 2 or 20 positions found in the same series.

Headers, Male Pins Replacement Considerations

Direct replacements must match the 2.54 mm pitch, 10-position count, and vertical form factor. Generic headers may differ in insulator material composition or contact plating specifications. Verify that any substitute component meets the same thermal and mechanical performance standards as the original PBT+GF30 construction.
