2131D2*12GSE

$0.65

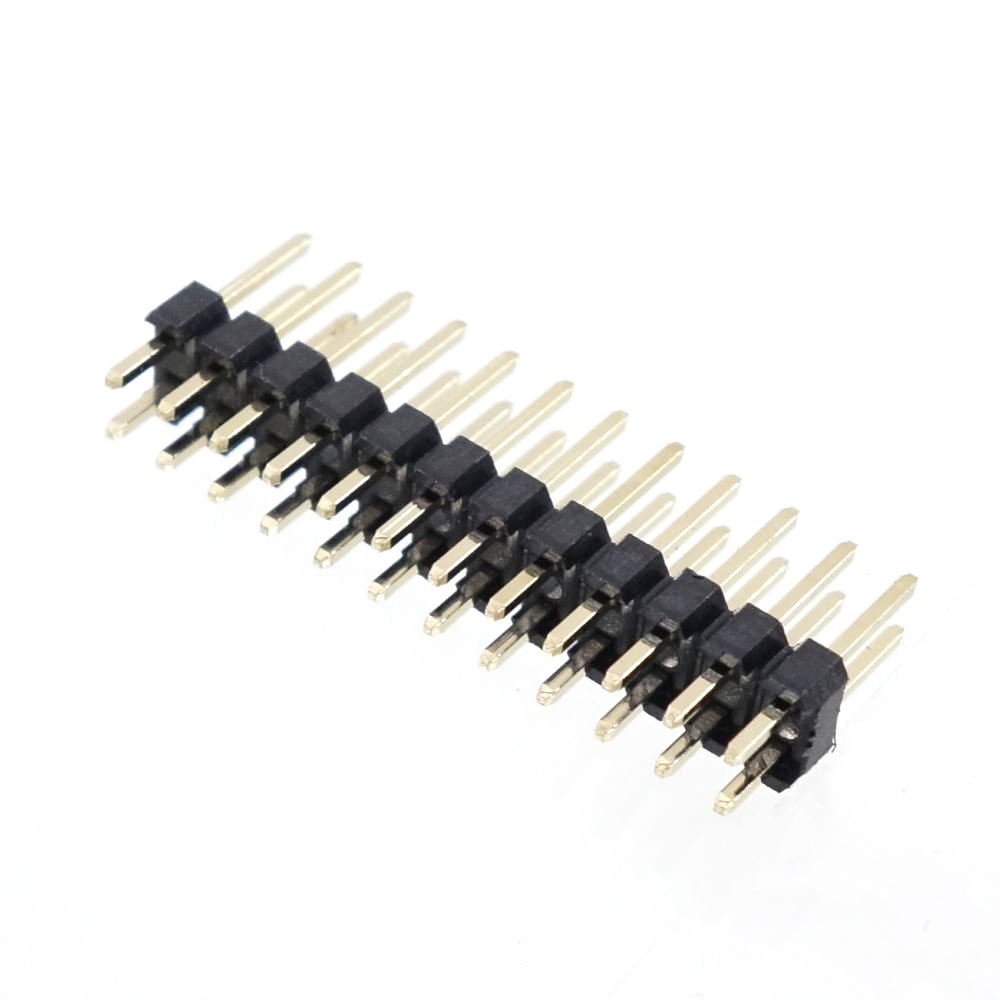

Description：CONN HEADER VERT 12POS 2.54MM
Series：-
Mfr：Marutsuelec
Package：Bulk

SKU:cd8f5ce79649 Category: Headers, Male Pins Brand: Marutsuelec

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2131D2*12GSE is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Marutsuelec. Its product description is CONN HEADER VERT 12POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 2131D2*12GSE

Description：CONN HEADER VERT 12POS 2.54MM
Series：-
Mfr：Marutsuelec
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：24
Number of Rows：2
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.240" (6.10mm)
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：0.457" (11.60mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：-
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：-
Insulation Material：-
Features：-
Operating Temperature：-40°C ~ 85°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Male Pins datasheet and documents for 2131D2*12GSE

2131D2*12GSE

Headers, Male Pins Overview

The Marutsuelec 2131D2*12GSE is a vertical header connector featuring 12 positions with a 2.54mm pitch. It utilizes PBT insulator material reinforced with 30% glass fiber for structural integrity and thermal stability. The component supports through-hole mounting and operates within a maximum temperature range of 85°C. Designed for reliable signal transmission, it accommodates all positions loaded and features two rows of contacts.

Headers, Male Pins Feature Summary

Vertical pin configuration for standard board stacking
Glass fiber reinforced PBT insulator for durability
Through-hole termination method for secure attachment

Headers, Male Pins Applications

General electronic interconnects
Industrial control modules
Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix designation against official Marutsuelec documentation to confirm exact pin count and mechanical dimensions. Ensure compatibility with mating socket connectors regarding pitch and row alignment. Confirm that the operating temperature rating meets the environmental requirements of the target application before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a 12-position vertical header is required for through-hole assembly. Consider the 2.54mm pitch standard for broad availability of mating parts. Evaluate the thermal performance of the PBT+GF material if the application involves elevated temperatures near the 85°C limit. Ensure sufficient board space for the vertical profile.

Headers, Male Pins Part Context

This part belongs to the Marutsuelec 2131D series of male pin headers. The series offers various position counts while maintaining consistent 2.54mm spacing and vertical orientation. These connectors are designed for general-purpose PCB interconnections, providing a robust solution for connecting cables or daughter boards in compact electronic designs.
