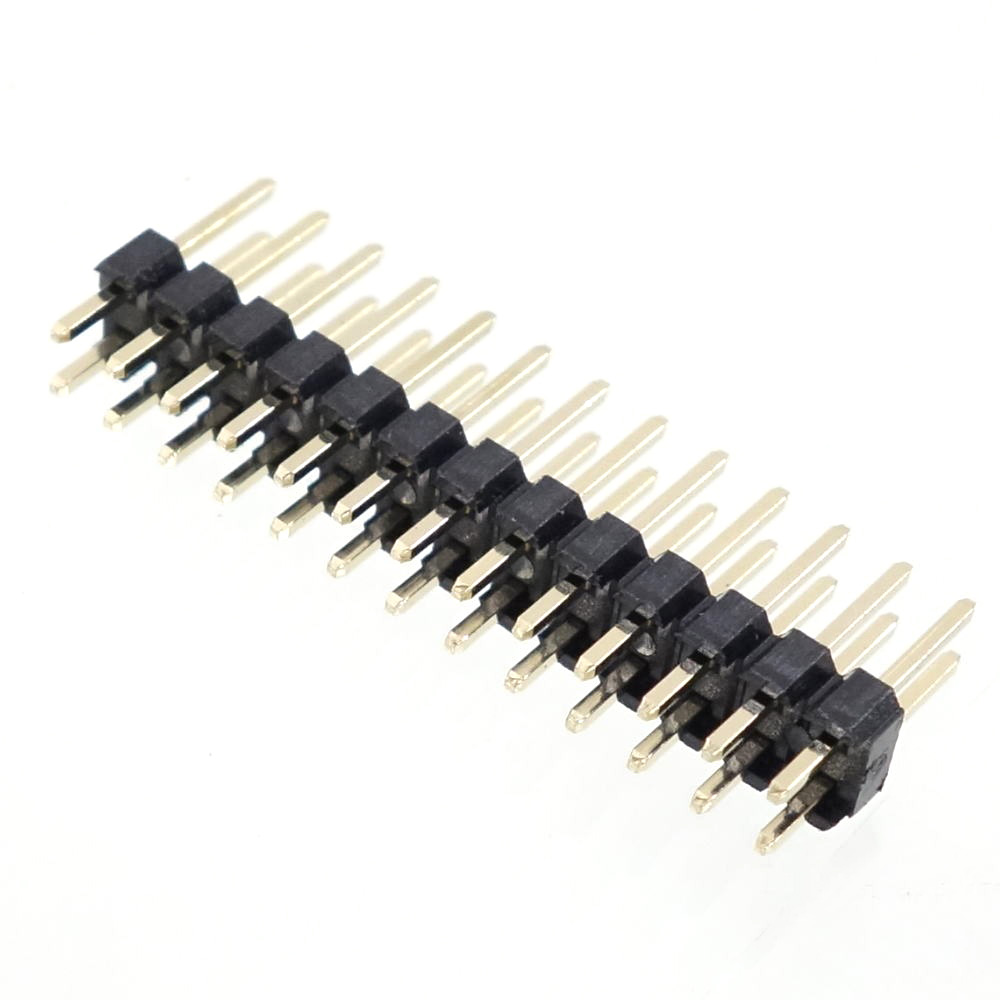

2131D2*13GSE is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Marutsuelec. Its product description is CONN HEADER VERT 13POS 2.54MM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for 2131D2*13GSE
- Description：CONN HEADER VERT 13POS 2.54MM
- Series：-
- Mfr：Marutsuelec
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：26
- Number of Rows：2
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.240" (6.10mm)
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：0.457" (11.60mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：-
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：-
- Features：-
- Operating Temperature：-40°C ~ 85°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：1A
- Voltage Rating：-
Headers, Male Pins datasheet and documents for 2131D2*13GSE
Headers, Male Pins Overview
The Marutsuelec 2131D2*13GSE is a vertical male pin header connector designed for through-hole mounting. It features a 13-position configuration with a 0.100-inch (2.54mm) pitch. The insulator material consists of PBT reinforced with 30% glass fiber, providing structural stability and thermal resistance. This component facilitates reliable electrical connections in various electronic assemblies requiring standard spacing and robust mechanical retention.
Headers, Male Pins Feature Summary
- Vertical orientation for board stacking or direct panel mounting
- Through-hole termination method for secure PCB attachment
- Glass-fiber reinforced PBT insulator for enhanced durability
Headers, Male Pins Applications
- General electronic circuit interconnections
- Industrial control system wiring
- Consumer electronics assembly
Headers, Male Pins Procurement Notes
Verify the exact position count matches the specific suffix designation during procurement. Confirm that the required current rating aligns with the application's electrical load requirements. Ensure the through-hole footprint on the target PCB corresponds to the specified 2.54mm pitch dimensions. Check for any specific flange or locking tab requirements if mechanical stability is critical for the final assembly environment.
Headers, Male Pins Selection Notes
Select this component when a vertical male header with a standard 2.54mm pitch is required. The glass-fiber reinforced construction makes it suitable for applications demanding higher mechanical strength compared to standard plastic headers. Consider the through-hole mounting style for superior retention force over surface mount alternatives in high-vibration environments.
Headers, Male Pins Part Context
This part belongs to the series of male pin headers manufactured by Marutsuelec. The numbering convention indicates the specific position count within the product line. These connectors are widely used in the electronics industry for creating standardized connection points between PCBs and external cables or other modules.
