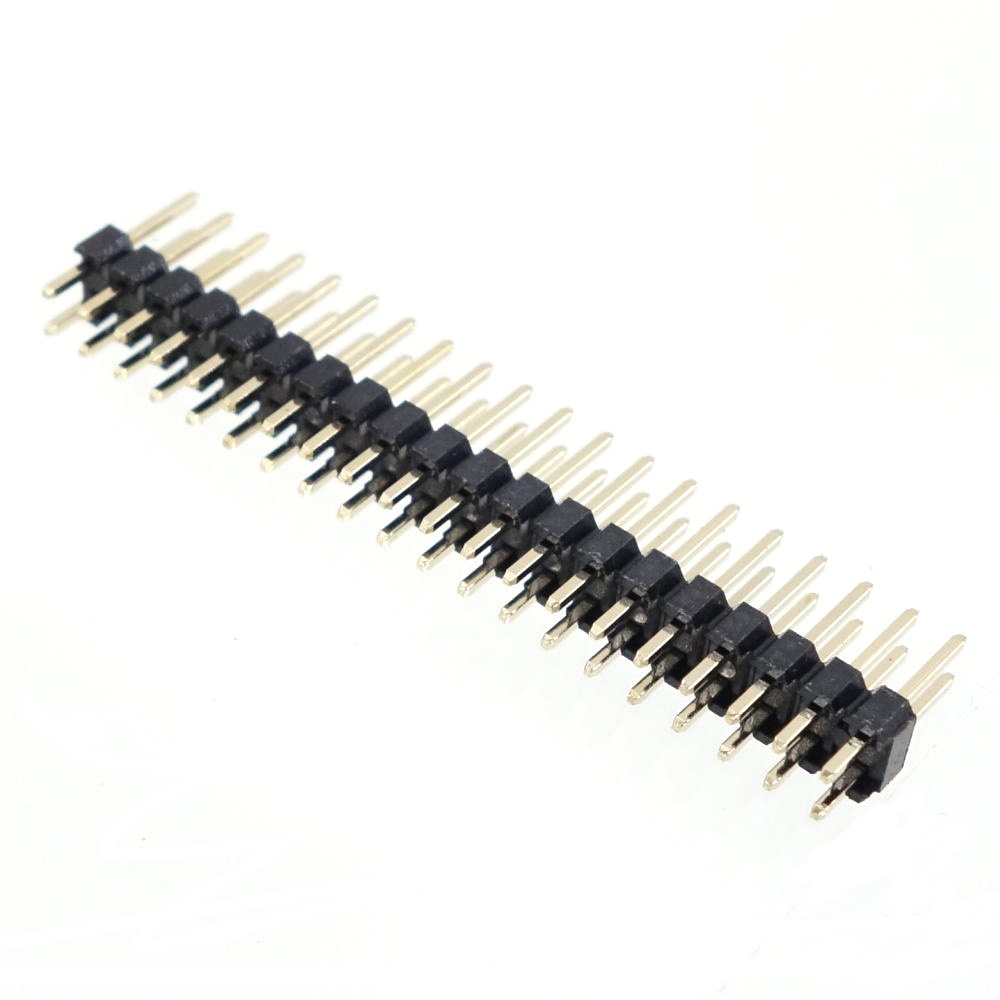

2131D2*20GSE is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Marutsuelec. Its product description is CONN HEADER VERT 20POS 2.54MM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for 2131D2*20GSE
- Description：CONN HEADER VERT 20POS 2.54MM
- Series：-
- Mfr：Marutsuelec
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：40
- Number of Rows：2
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.240" (6.10mm)
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：0.457" (11.60mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：-
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：-
- Features：-
- Operating Temperature：-40°C ~ 85°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：1A
- Voltage Rating：-
Headers, Male Pins datasheet and documents for 2131D2*20GSE
Headers, Male Pins Overview
The Marutsuelec 2131D2*20GSE is a vertical header connector designed for through-hole mounting. It features 20 positions with a 2.54 mm (0.100 inch) pin spacing. The insulator material is specified as PBT reinforced with 30% glass fiber, providing structural stability and thermal resistance. This component serves as an interconnect solution within electronic assemblies requiring reliable signal or power transmission across board interfaces.
Headers, Male Pins Feature Summary
- Vertical orientation for standard PCB mounting
- Through-hole termination method
- Glass-fiber reinforced PBT insulator
Headers, Male Pins Applications
- General electronic circuit boards
- Industrial control systems
- Consumer electronics assemblies
Headers, Male Pins Procurement Notes
Verify the specific pin count and pitch against the design schematic to ensure compatibility with mating connectors. Confirm that the PBT insulator rating meets the thermal requirements of the intended assembly process. Check for any RoHS compliance documentation if required by the manufacturing standards.
Headers, Male Pins Selection Notes
Select this connector when a 20-position vertical interface is required. Ensure the PCB footprint matches the 2.54 mm grid. Consider the mechanical strength provided by the glass-fiber reinforced housing for applications subject to vibration or repeated mating cycles.
Headers, Male Pins Part Context
This part belongs to the series of vertical header connectors offered by Marutsuelec. Similar variants exist with different position counts, such as the 2-position 2131D2*2GSE. These components are commonly used in interconnect applications where space efficiency and reliable connection are prioritized.
Headers, Male Pins Replacement Considerations
Compatible replacements must match the 20-position count, 2.54 mm pitch, and vertical form factor. Verify that alternative suppliers offer headers with identical insulator materials and termination styles to maintain mechanical and electrical consistency.
