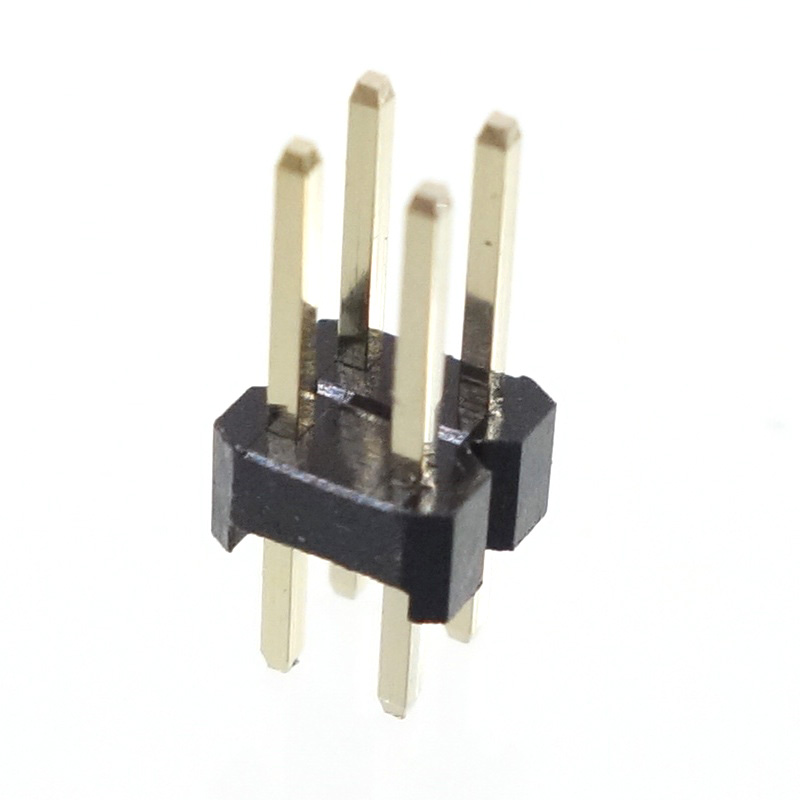

2131D2*2GSE is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Marutsuelec. Its product description is CONN HEADER VERT 2POS 2.54MM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for 2131D2*2GSE
- Description：CONN HEADER VERT 2POS 2.54MM
- Series：-
- Mfr：Marutsuelec
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：4
- Number of Rows：2
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.240" (6.10mm)
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：0.457" (11.60mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：-
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：-
- Features：-
- Operating Temperature：-40°C ~ 85°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：1A
- Voltage Rating：-
Headers, Male Pins datasheet and documents for 2131D2*2GSE
Headers, Male Pins Overview
The Marutsuelec 2131D2*2GSE is a vertical header connector featuring two positions with a 0.100-inch (2.54mm) pitch. It utilizes through-hole mounting for secure PCB attachment. The insulator material is PBT reinforced with 30% glass fiber, meeting UL 94V-0 flammability standards. Maximum contact resistance is specified at 20 milliohms under DC 100mA conditions, while minimum insulation resistance exceeds 1000 megohms at DC voltage.
Headers, Male Pins Feature Summary
- Vertical orientation design for standard board stacking
- Glass fiber reinforced PBT insulator for thermal stability
- Through-hole termination method for mechanical robustness
Headers, Male Pins Applications
- General electronic interconnects
- Control panel wiring
- Industrial equipment signal routing
Headers, Male Pins Procurement Notes
Verify the exact pin count and pitch against the datasheet to ensure compatibility with mating connectors. Confirm that the PBT insulator rating meets the operational temperature requirements of the target environment. Check surface finish specifications if solderability or specific plating thickness is critical for the assembly process.
Headers, Male Pins Selection Notes
Select this component when a low-profile vertical header is required for two-wire connections. Ensure the PCB hole diameter matches the pin dimensions for proper fit. Consider the UL 94V-0 rating if fire safety compliance is necessary for the final product enclosure.
Headers, Male Pins Part Context
This part belongs to the 2131 series of male pin headers manufactured by Marutsuelec. The series offers various position counts, including 4, 10, and other configurations, all sharing the same 2.54mm pitch and construction materials. The suffix indicates specific variations within the product line.
Headers, Male Pins Replacement Considerations
Compatible substitutes include other 2-position, 2.54mm pitch vertical headers from manufacturers such as Samtec, Molex, or JST, provided they match the pin dimensions and current ratings.
