2131D2*3GSE

Headers, Male Pins Overview

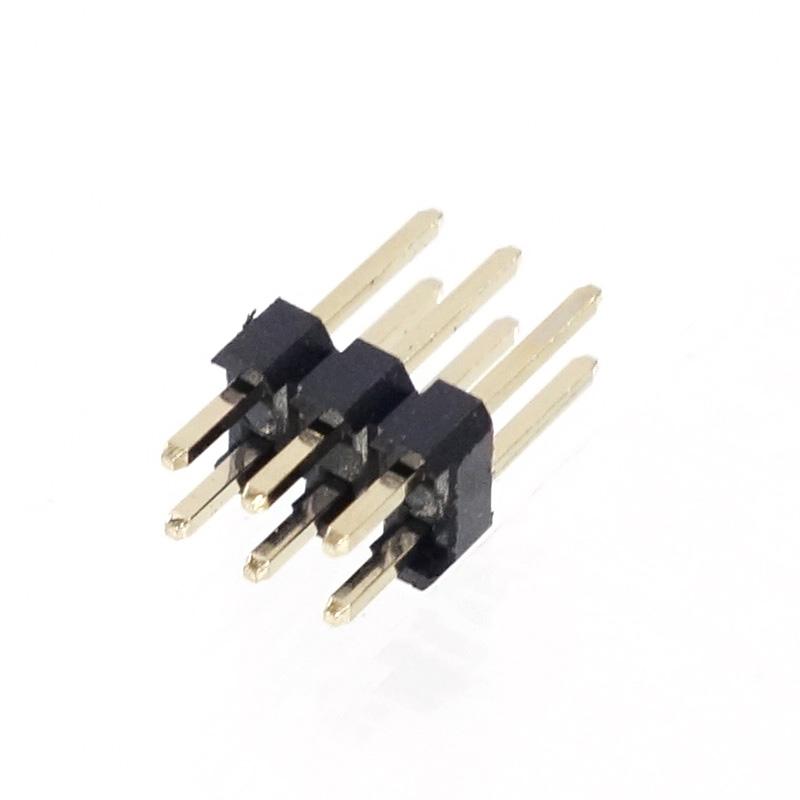

The Marutsuelec 2131D2*3GSE is a male pin header connector designed for through-hole mounting. It features three positions with a vertical orientation and a pitch of 0.100 inches (2.54 mm). The component utilizes PBT insulator material reinforced with 30% glass fiber, meeting UL 94V-0 flammability standards. Electrical specifications include a maximum contact resistance of 20 milliohms at DC 100 mA and a minimum insulator resistance of 1000 megohms at DC.

Headers, Male Pins Feature Summary

• Vertical through-hole mounting configuration for standard PCB integration
• High-strength insulator construction using glass-fiber-reinforced PBT
• Standardized 0.100-inch pitch for broad compatibility with mating connectors

Headers, Male Pins Applications

• General electronic circuit board interconnections
• Industrial control panel wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the exact pin count and pitch against the specific suffix code in the official Marutsuelec datasheet to ensure compatibility with the target PCB footprint. Confirm that the insulator material rating meets the thermal requirements of the intended assembly process. Cross-reference the part number with authorized distributors to confirm current availability status.

Headers, Male Pins Selection Notes

Select this component when a low-profile, vertical header is required for reliable signal or power transmission. Ensure the PCB hole diameter matches the 2.54 mm pitch specification. Consider the mechanical stability provided by the through-hole design versus surface-mount alternatives if vibration resistance is a primary concern for the application environment.

Headers, Male Pins Part Context

This part belongs to the series of male pin headers distributed by Marutsuelec, a sole distributor for DigiKey in Japan. The product line focuses on providing reliable interconnect solutions for various electronic assemblies. The specific model denotes a three-position variant within the broader catalog of vertical headers available through their supply chain.

Headers, Male Pins Replacement Considerations

Compatible substitutes must match the 2.54 mm pitch, vertical orientation, and three-position count. Verify that alternative manufacturers offer comparable insulator materials and electrical ratings to maintain performance integrity.
