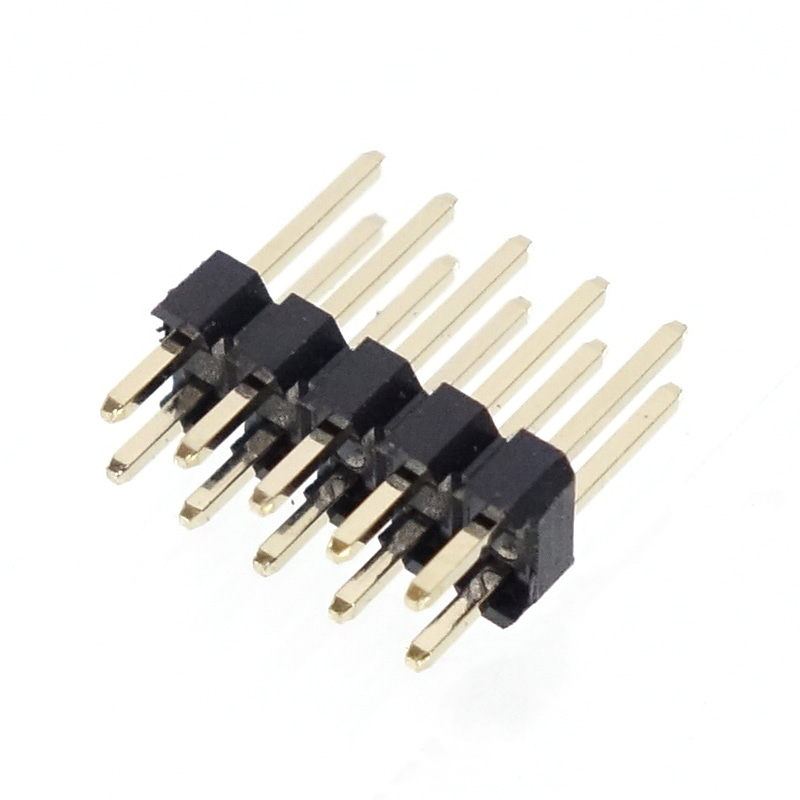

2131D2*9GSE is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Marutsuelec. Its product description is CONN HEADER VERT 9POS 2.54MM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for 2131D2*9GSE
- Description：CONN HEADER VERT 9POS 2.54MM
- Series：-
- Mfr：Marutsuelec
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：18
- Number of Rows：2
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.240" (6.10mm)
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：0.457" (11.60mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：-
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：-
- Features：-
- Operating Temperature：-40°C ~ 85°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：1A
- Voltage Rating：-
Headers, Male Pins datasheet and documents for 2131D2*9GSE
Headers, Male Pins Overview
The Marutsuelec 2131D2*9GSE is a through-hole male pin header connector featuring nine positions with a 0.100-inch (2.54mm) pitch. Constructed with PBT insulator material rated UL 94V-0, it ensures high insulation resistance of at least 1000M ohms and low contact resistance under DC conditions. Designed for reliable electrical interconnections, this component supports standard PCB mounting techniques.
Headers, Male Pins Feature Summary
- Through-hole male pin configuration for secure board attachment
- High insulation resistance utilizing glass-filled PBT material
- Standard 0.100 inch spacing for broad compatibility
Headers, Male Pins Applications
- General electronic circuit interconnections
- Prototype development boards
- Industrial control panel wiring
Headers, Male Pins Procurement Notes
Verify the specific position count and pitch against project requirements before ordering. Confirm that the supplier source matches official distribution channels to ensure component authenticity. Check datasheet specifications for temperature ratings and material compliance prior to final integration into the design.
Headers, Male Pins Selection Notes
Select this header when a nine-position vertical or right-angle through-hole connection is required. Ensure the mating socket or cable assembly matches the 2.54mm pitch specification. Consider the UL 94V-0 rating if flame retardancy is necessary for the application environment.
Headers, Male Pins Part Context
This component belongs to the Marutsuelec series of male pin headers, which are widely used in electronics manufacturing. The model number indicates the specific pin count and physical characteristics within the broader connector family offered by the manufacturer.
Headers, Male Pins Replacement Considerations
Compatible substitutes include other 9-position, 2.54mm pitch male headers from manufacturers such as Samtec, Molex, or TE Connectivity. Verify mechanical dimensions and terminal plating specifications to ensure interchangeability.
