2132415-5

Headers, Male Pins Overview

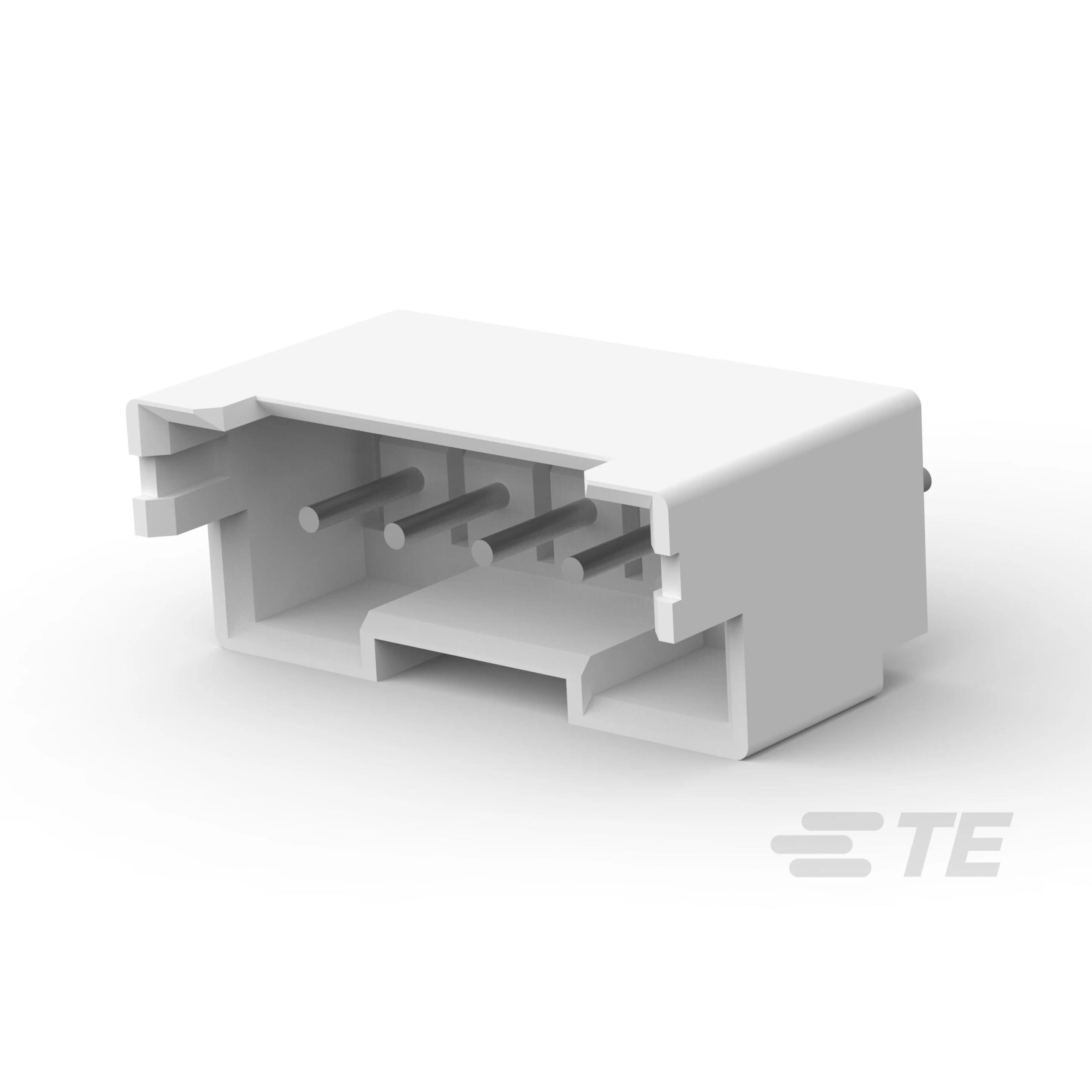

The TE Connectivity 2132415-5 is a vertical pin header from the Economy Power 2.5 series, designed for through-hole board-to-wire applications. It features a 2.50mm pitch with five positions in a single row. The connector utilizes brass contacts with tin plating (80.0µin thickness) and a natural polyamide (PA66) insulation housing rated UL94 V-0. Rated for 250VAC and 4.2A, it operates within a temperature range of -55°C to 105°C. The shrouded design includes a four-wall barrier and friction lock for secure mating.

Headers, Male Pins Feature Summary

• Shrouded four-wall barrier design ensures correct alignment and prevents mis-mating during assembly.
• Through-hole termination style provides robust mechanical stability for PCB mounting.
• Friction lock mechanism secures the mating connector to maintain reliable electrical contact.

Headers, Male Pins Applications

• General purpose electronic assemblies
• Industrial control systems
• Lighting equipment connections

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required pin count and pitch before procurement. Confirm that the component status is acceptable for your design lifecycle, as availability may vary. Ensure that the through-hole footprint on the PCB aligns precisely with the datasheet dimensions to guarantee proper solder joint integrity and mechanical fit during manufacturing.

Headers, Male Pins Selection Notes

Select this component when a low-cost, high-reliability solution is needed for power or signal transmission in compact spaces. The Economy Power 2.5 series offers a balance of current carrying capacity and small form factor. Consider the shrouded design if orientation accuracy is critical. Verify that the operating voltage and current requirements do not exceed the 250VAC and 4.2A ratings under all environmental conditions.

Headers, Male Pins Part Context

This part belongs to the Economy Power 2.5 family, which provides cost-effective interconnect solutions for various industries. The series is characterized by its 2.50mm pitch and robust construction suitable for general industrial use. As a pin header, it serves as the male counterpart to compatible receptacles, facilitating easy assembly and maintenance in wire-to-board configurations.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 2.50mm pitch headers from the same manufacturer series, such as the 2132415-3 (3-position) or 2132415-7 (7-position), provided the pin count differs. Cross-brand replacements must match the 2.50mm pitch, 5-position configuration, through-hole termination, and shrouded height specifications to ensure mechanical and electrical compatibility.
