213A-09RE-02

Headers, Male Pins Overview

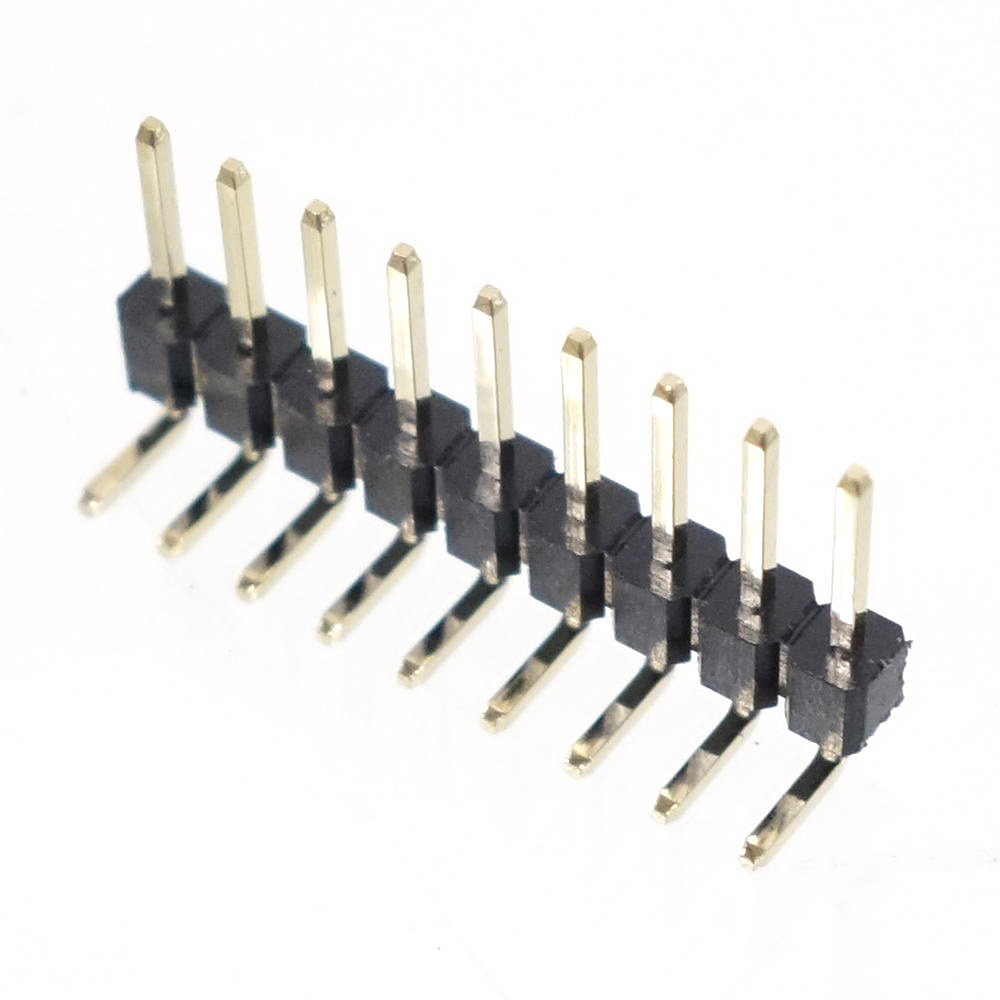

The Marutsuelec 213A-09RE-02 is a male pin header connector designed for through-hole mounting on printed circuit boards. It features nine positions arranged in a single row with square contact shapes. The component utilizes black insulation material rated UL94 V-0 for flammability safety. Electrical specifications include an operating temperature range of -40°C to 85°C and a defined current rating, ensuring reliable signal transmission in standard electronic assemblies.

Headers, Male Pins Feature Summary

• Square contact shape design for secure mating
• UL94 V-0 rated black insulation material
• Through-hole solder termination method

Headers, Male Pins Applications

• General purpose PCB interconnects
• Industrial control board connections
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific current rating value against the official Marutsuelec datasheet before integration, as general descriptions may omit precise amperage limits. Confirm that the square pin geometry matches the target receptacle footprint. Ensure the through-hole pad layout accommodates the specified terminal dimensions to prevent mechanical stress during soldering or thermal cycling.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with square pins is required for low-to-medium density connections. The UL94 V-0 insulation rating makes it suitable for applications requiring basic fire resistance. Consider the -40°C to 85°C operating range to ensure compatibility with the environmental conditions of the final product assembly.

Headers, Male Pins Part Context

This part belongs to the Marutsuelec header series, focusing on standard density interconnect solutions. It serves as a fundamental passive component for establishing electrical pathways between PCBs or cables. The design prioritizes mechanical stability and consistent contact performance over high-speed signal integrity features found in specialized RF connectors.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify pin pitch and housing width compatibility if considering alternative manufacturers.
