213A-20RE-03

Headers, Male Pins Overview

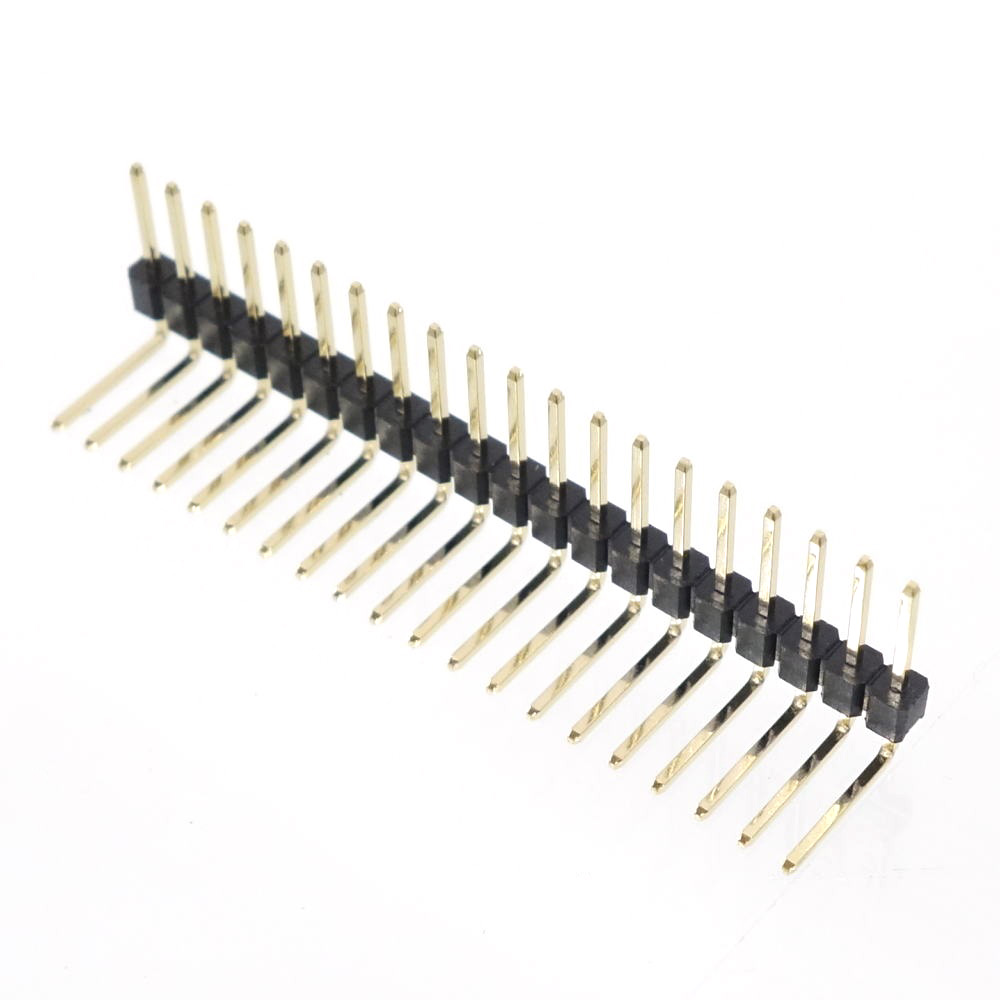

The Marutsuelec 213A-20RE-03 is a rectangular connector header designed for through-hole mounting on printed circuit boards. It features a right-angle configuration with 20 positions arranged in a single row. The pin spacing is standardized at 0.100 inches (2.54 mm), ensuring compatibility with common PCB layouts. This component serves as a male pin header for interconnecting electronic assemblies.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact board-to-board connections
• Through-hole termination method ensures secure mechanical attachment
• Standardized 2.54 mm pitch supports widespread industry compatibility

Headers, Male Pins Applications

• General-purpose electronic interconnects
• Prototype development and testing setups
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific part number against official Marutsuelec documentation to confirm the 20-position count and right-angle orientation. Ensure that the through-hole footprint matches the target PCB design requirements. Confirm compliance with relevant environmental standards if required by the end application.

Headers, Male Pins Selection Notes

Select this component when a right-angle male header is required for reliable through-hole connection. The 2.54 mm pitch is suitable for standard signal and power distribution tasks. Consider the physical clearance needed for the right-angle profile during mechanical enclosure design.

Headers, Male Pins Part Context

This part belongs to the Marutsuelec series of rectangular connectors, which are widely distributed components used in various electronic systems. Marutsuelec acts as a distributor, often leveraging supply chain networks to provide these standard interconnect solutions to customers in Japan and beyond.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other manufacturers' 20-position, 2.54 mm pitch right-angle male headers with through-hole termination. Verify that mechanical dimensions and contact plating specifications match the original design requirements before substitution.
