2141-1X14G00SA

Overview

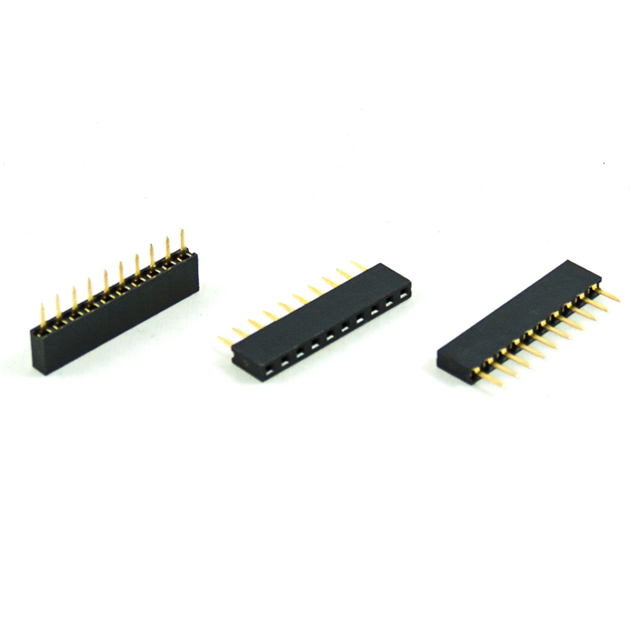

The Oupiin 2141-1X14G00SA is a single-row board connector featuring 14 female contacts with a 0.079-inch (2.00mm) pitch. Designed for through-hole mounting, it utilizes gold-plated terminals to ensure reliable signal transmission. The component incorporates a locking mechanism and straight orientation for secure PCB integration.

Feature Summary

• Single-row receptacle configuration with 14 positions
• Gold-plated contact surfaces for enhanced conductivity
• Integrated locking feature for mechanical stability

Applications

• General-purpose on-board interconnection systems
• Multi-way circuit contact interfaces
• Low-cost electronic assembly applications

Procurement Notes

Verify the specific pin count and terminal plating against official datasheets before procurement. Confirm that the single-row 14-position layout matches the target PCB footprint requirements. Ensure compatibility with mating header components to guarantee proper electrical connection and mechanical fit during assembly.

Selection Notes

Select this component when a single-row female socket with a 2.00mm pitch is required. It is suitable for applications prioritizing cost-effective interconnection solutions. Verify that the through-hole mounting style aligns with the manufacturing process and that the locking feature meets the mechanical retention needs of the design.

Part Context

This part belongs to the Oupiin box header series, specifically designed as a low-cost interconnection system. It provides quick on-board contact for multi-way circuits. The product line focuses on delivering reliable performance for general electronic applications while maintaining competitive manufacturing standards.

Replacement Considerations

Ensure replacement parts maintain the 0.079-inch pitch and 14-contact configuration. Verify that alternative sockets support through-hole mounting and offer comparable locking mechanisms. Confirm that the contact gender remains female to preserve mating compatibility with existing headers.
