2143-1X11G00DAT-P

Overview

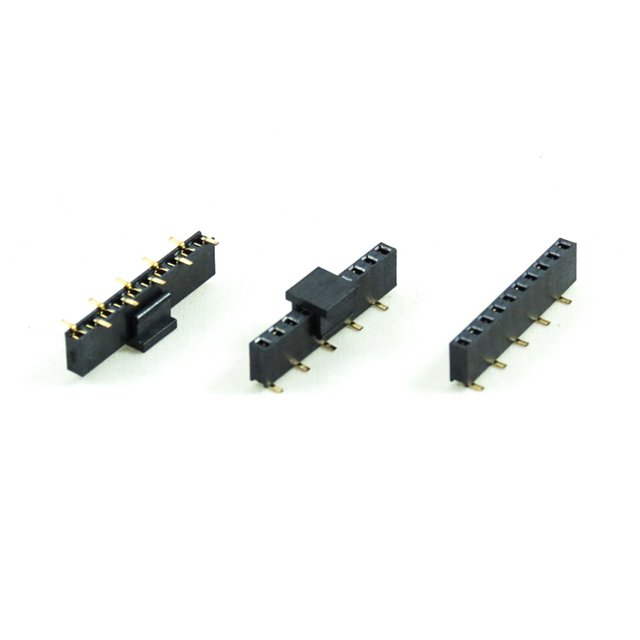

The Oupiin 2143-1X11G00DAT-P is a surface mount board connector featuring an 11-position single-row female socket configuration. It utilizes a 0.079-inch (2.00mm) contact pitch and employs gold-plated terminals for reliable signal transmission. The component is designed for direct PCB mounting, offering a compact footprint suitable for space-constrained electronic assemblies.

Feature Summary

• Surface mount construction for automated assembly integration
• Gold-plated contacts to ensure low resistance and corrosion resistance
• Single-row female socket design for mating with male headers

Applications

• General-purpose PCB interconnections
• Signal transfer in consumer electronics
• Compact device internal wiring

Procurement Notes

Verify the RoHS compliance status and lead-free designation against current manufacturer documentation before procurement. Confirm that the specific ordering suffix matches the required surface mount orientation and contact finish specifications to ensure compatibility with intended assembly processes.

Selection Notes

Select this component when a 2.00mm pitch surface mount interface is required. Ensure the mating partner provides compatible male pins with appropriate plating. Validate that the PCB land pattern aligns with the specified body dimensions and terminal spacing for proper solder joint formation.

Part Context

This part belongs to the Oupiin 2143 series of board connectors. The series offers various position counts and configurations, including both through-hole and surface mount options. This specific model represents a mid-range pin count variant within the single-row socket family.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching pitch, row count, termination type, and gender with alternative manufacturers' datasheets.
