2150BP39A0100001E

Overview

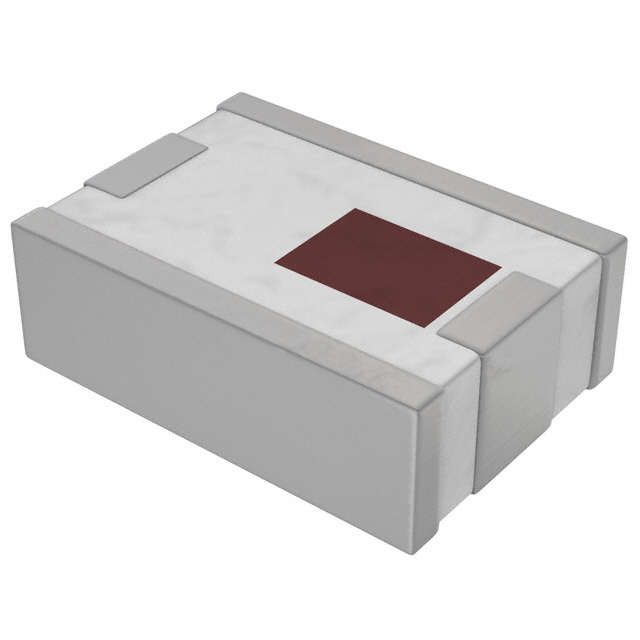

The 2150BP39A0100001E is a surface-mount RF bandpass filter manufactured by Johanson Technology Inc. Designed for the 2.1GHz to 2.2GHz frequency range, this component features a center frequency of 2.25GHz with a bandwidth of 100MHz. It exhibits an insertion loss of 3.2dB and is housed in a compact 1008 (2520 Metric) package measuring 2.50mm x 2.00mm x 1.00mm. The device supports RoHS3 compliance and operates within standard moisture sensitivity levels.

Feature Summary

• Provides selective signal filtering within the specified radio frequency band
• Utilizes a low-loss design to maintain signal integrity
• Offers high attenuation characteristics outside the passband

Applications

• Wireless local area network (WLAN) systems
• Bluetooth communication modules
• Zigbee devices
• Wi-Fi enabled consumer electronics

Procurement Notes

Verify the complete manufacturer part number including suffixes when ordering. Confirm that the requested quantity matches the standard packaging specifications provided by the supplier. Ensure compatibility with existing surface mount assembly processes. Check for any recent global part numbering changes issued by the manufacturer before finalizing procurement documents.

Selection Notes

Select this component for applications requiring precise filtering in the 2.1GHz to 2.2GHz spectrum. The 1008 package size offers a balance between performance and board space efficiency. Consider the 3.2dB insertion loss specification when designing for power-sensitive circuits. Ensure the operating environment aligns with the component's thermal and mechanical ratings.

Part Context

This component belongs to Johanson Technology's series of integrated passive devices designed for wireless connectivity. It serves as a critical element in managing spectral interference for modern short-range communication protocols. The device integrates resonant structures to achieve sharp roll-off characteristics without discrete external components.

Replacement Considerations

Legacy part number 2150BP39A0100 may be referenced in older documentation. Verify functional equivalence if substituting from other manufacturers. Ensure pinout and footprint dimensions match the 1008 (2520 Metric) specification to avoid rework.
