2160-A6-S212-0EBGA

Headers, Receptacles, Female Sockets Overview

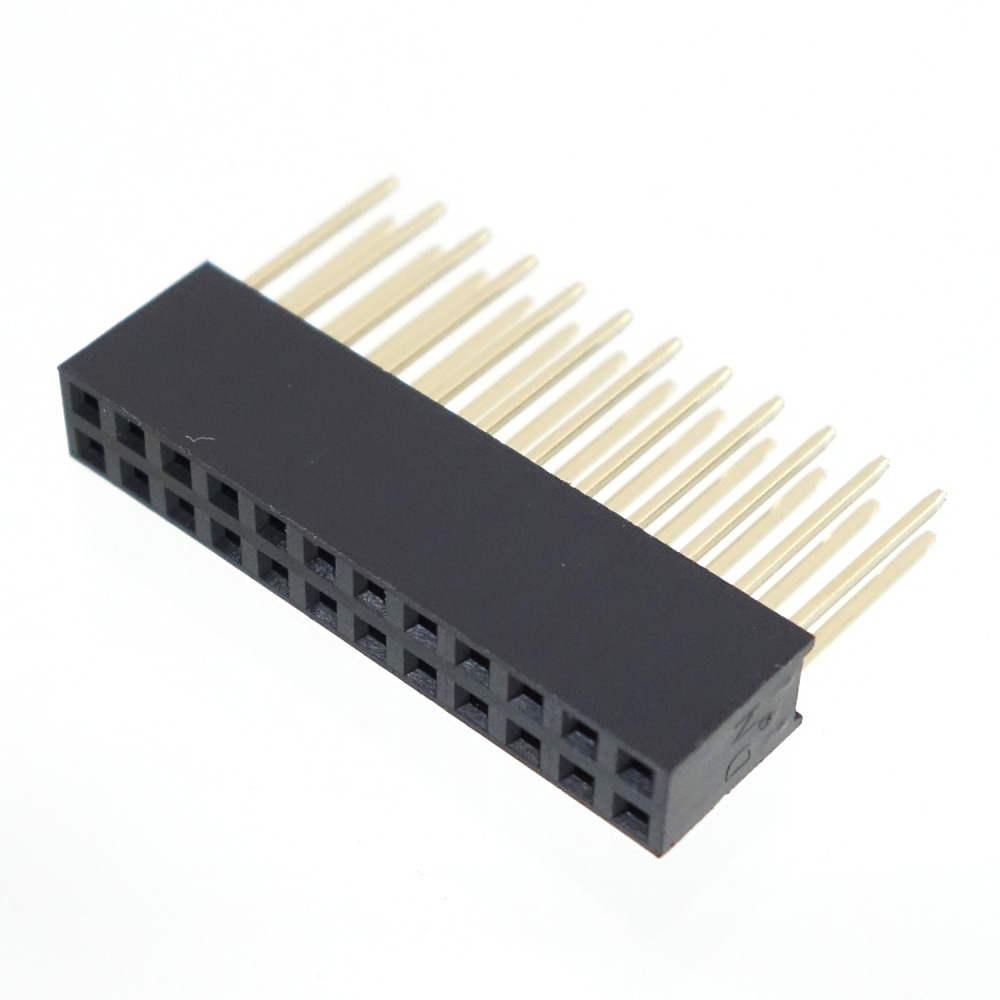

The Marutsuelec 2160-A6-S212-0EBGA is a 24-position receptacle connector designed for through-hole mounting. It features a 0.100-inch (2.54mm) pitch and utilizes a dual-row configuration with two rows of pins per side. The component employs an elevated story option and is identified as a serial type connector. The specific model suffix indicates the use of straight-type terminals, providing a reliable mechanical interface for PCB integration in electronic assemblies requiring standard spacing.

Headers, Receptacles, Female Sockets Feature Summary

• Dual-row receptacle design for increased pin density
• Through-hole mounting technology for secure PCB attachment
• Standard 0.100 inch (2.54mm) contact spacing

Headers, Receptacles, Female Sockets Applications

• General purpose electronic circuit board interconnections
• Industrial control system hardware interfaces
• Consumer electronics assembly modules

Headers, Receptacles, Female Sockets Procurement Notes

Verify the exact terminal orientation and row configuration against the schematic requirements before procurement. Confirm that the straight terminal style matches the board layout constraints. Ensure the through-hole footprint dimensions align with the manufacturing capabilities of the printed circuit board supplier to guarantee proper insertion and soldering integrity during assembly processes.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a dual-row receptacle with a standard 2.54mm pitch is required for through-hole applications. The straight terminal option is suitable for vertical mating connections. Consider the physical height and mechanical stability provided by the elevated story option when designing the enclosure or chassis fitment for the final electronic product assembly.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the 2160-A6 series of connectors manufactured by Marutsuelec. The series designation indicates a specific family of serial type connectors with defined row and terminal options. The model number encodes the position count, row configuration, and terminal style, distinguishing it from other variants within the broader connector portfolio offered by the manufacturer.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available in the source documentation. Verify compatibility with existing footprints if considering alternative manufacturers.
