21601X08RE

Headers, Receptacles, Female Sockets Overview

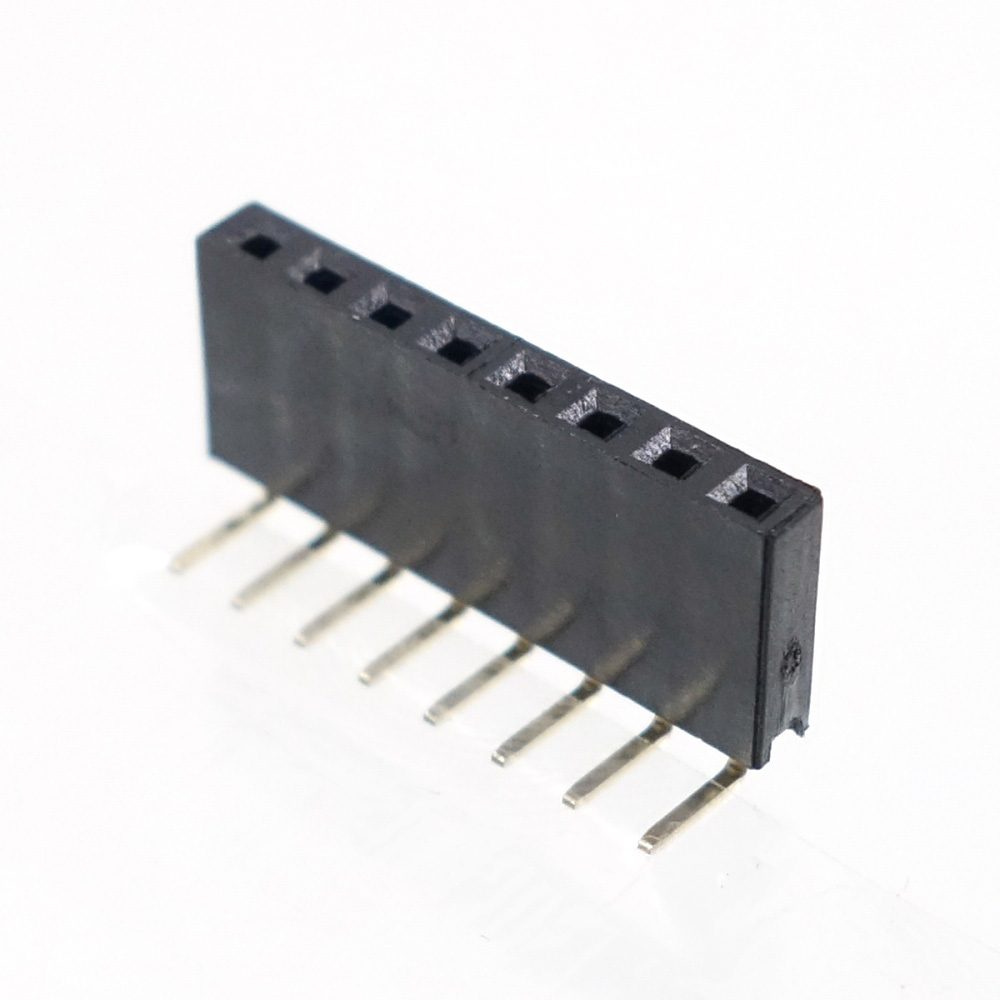

The Marutsuelec 21601X08RE is an 8-position receptacle connector designed for through-hole mounting. It features a 0.100-inch (2.54mm) pitch and utilizes a right-angle configuration to facilitate PCB layout flexibility. The component serves as a female socket interface, providing reliable electrical connections in electronic assemblies requiring standard spacing and vertical integration.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle orientation for space-efficient board stacking
• Through-hole termination method for secure mechanical attachment
• Female socket contact type for mating with pin headers

Headers, Receptacles, Female Sockets Applications

• Industrial control panel interconnections
• Consumer electronics assembly modules
• General-purpose circuit board expansion interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific manufacturer datasheet for precise mechanical dimensions and material specifications. Confirm that the right-angle footprint matches the target PCB design requirements. Ensure compatibility with standard 0.100-inch pitch header pins before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a right-angle through-hole connection is required for an 8-pin interface. The 2.54mm pitch ensures broad compatibility with standard header systems. Consider the right-angle form factor for applications where vertical clearance or edge mounting is necessary.

Headers, Receptacles, Female Sockets Part Context

Marutsuelec distributes electronic components including connectors from various manufacturers. This part number represents a specific passive interconnect component within their catalog, categorized under headers and receptacles. It functions as a standard interface element in broader electronic system architectures.
